Add a Powerful Siren to Create Your Own Insteon Alert System
- Wirelessly pairs with Insteon Sensors to create a custom alert system
- Easy to set up – wireless and plugs directly into a wall outlet
- Plugs directly into a wall outlet, no wires to deal with and no holes drilled into walls
- Uses Insteon dual mesh radio and powerline communication for wireless convenience and ultimate reliability
- Supports up to 24 device links (trigger and arming devices)
Keep your home and loved ones safe and secure by adding a siren to your Insteon system. The Insteon Siren generates a loud 115db alert sound when Insteon wireless sensors are triggered or when activated by Insteon controllers, deterring burglars and notifying you and your family of trouble. The Insteon Siren also features a secondary, more pleasant chime tone for alerting you to less-critical happenings in and around your home. Alerts can be armed and disarmed either through the Insteon app ( Insteon Hub required) or from an Insteon Keypad, Mini Remote or other controller – allowing alerts to sound only when you want them. Installation is easy and completely wireless so no need to run wires or drill mounting holes in the wall.
Setup and configuration is quick and easy when using the Insteon Hub app and allows you to use your smartphone to Arm/Disarm as well as configure alerts to go directly to your phone for notifications while away from home. The Insteon Siren can also be used without a hub by manually pairing to Insteon sensors (for triggers) and controllers (for arm/disarm).
The Insteon Siren can be linked to up to 24 devices (trigger and arming devices).
Sensor Companion
Pair Siren with your home's Door, Window, Motion and Leak sensors and you'll know the moment something is amiss.
Two Audible Tones
Choose between a chime and a 115 dB siren to match your alerting needs.
Arm & Disarm Devices
Use Insteon Wall Keypads, Mini Mini Remotes and more to arm and disarm Siren. Or use your Smartphone when paired with the Insteon Hub.
Connect Insteon Siren
Getting started with Insteon Siren is as simple as connecting it to a power outlet. You can use the set button to hear sample alert tones, too, so you can ensure an audible alert during placement.
Configure Your Sensors
With the Insteon Hub, fire up the Insteon app on your smartphone or tablet and build scenes for the different alert modes. Add your high-importance sensors to instant loud siren and your everyday alerts to instant chime.
Arm and Disarm
Nothing cries wolf quite like setting off the alarm every time you walk through your front door. With Insteon Siren, you can use other Insteon devices to arm and disarm your alerts, letting you manage your home's security like a pro.
Without Insteon Hub
Don't have Insteon Hub? You can still configure and control Siren directly from other Insteon devices. Arm and disarm from a keypad, sound the alarm with sensors and notify with the chime, all without software or a central controller.
*Compatible with Insteon for Hub on iOS and Android only.
How Will You Use Siren?
Pair Siren with Insteon Sensors and you can build an intrusion detection system, an early warning system, a child monitoring system and more.
- Pair Leak Sensor with Siren and you'll know the second there's a water leak.
- Multiple Door and Window sensors can trigger Siren for DIY perimeter monitoring.
- Use Siren's Chime to monitor the pool gate and keep awareness of unsupervised would-be-swimmers.
- Notify the entire household when the liquor cabinet has been opened with Siren's Chime.
- Extend the reach of Smoke Bridge and sound Siren when smoke or CO is detected.
- Let Siren's Chime notify you when the garage door has been opened.
General | |
Manufacturer | Insteon |

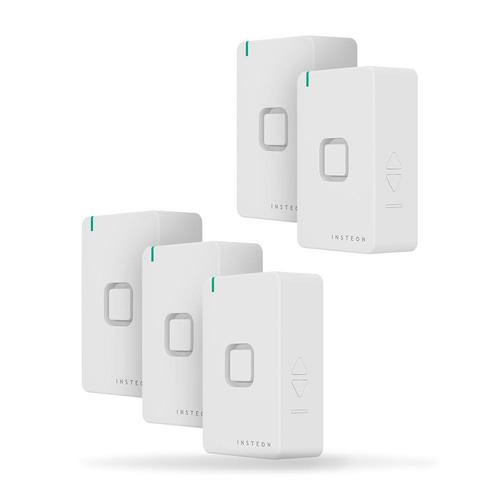

Manufacturer Product No. | 2868-222 - (Each) 2868-222-5PK - (5-Pack) |
UPC | 813922015713 - (Each) 813922019964 - (5-Pack) |
Patent No. | U.S. Patent No. 7,345,998. Protected under U.S. and foreign patents (see www.insteon.com) |
FCC ID | SBP2457D2A |
Industry Canada | 5202A-2457D2A |
Warranty | 2 Years |
Operation | |
Audio Alert | Beeper, Chime, Siren |
Chime Volume | 100 dB at 1 meter |
Siren Volume | 115 dB at 1 meter |
Setup Memory | Non-volatile EEPROM |
Status LED | Red/Green LED |
Insteon Features | |
Insteon Device Category | 0x07 |
Insteon Device Subcategory | 0x1E |
Insteon Links | 24 |
Insteon Messages Repeated | Yes |
Insteon Minimum Receive Level | 10 mV |
Insteon Minimum Transmit Level | 3.2 Vpp into 5 Ohms |
Insteon Powerline Device | Yes |
Insteon Powerline Frequency | 131.65 KHz |
Insteon RF Device | Yes |
Multi-Link Support | Yes |
Multi-Unlink Support | Yes |
RF Beacon | Yes |
Radio Frequency | 915.0 MHz |
Radio Frequency Range | 150 ft. (Depending on your home’s construction) |
Scene Commands Supported as Controller | Fast-On Fast-Off |
Scene Commands Supported as Responder | On, Fast-On Off |
Software Configurable | Yes |
Mechanical | |
Dimensions | 3.2” H x 2.05” W x 1.05” D 81.2mm H x 53mm W x 26.6mm D< |
Enclosure Material | UV stabilized plastic |
Mounting | Ungrounded, polarized electrical outlet, NEMA 1-15 |
Operating Environment | Indoors |
Operating Humidity Range | 0-85% relative humidity, non-condensing |
Operating Temperature Range | 32º to 104º F 0º to 40º C |
Set Button | Yes |
Storage Temperature Range | -4º to 158º F -20º to 70º C |
Weight | 3.3 oz |
Electrical | |
Power Consumption | <0.75 Watts |
Supply Voltage | 120 Volts AC ± 10%, 60 Hertz, single phase |
Surge Resistance | Surges over 1,000 volts |
- 1x - Insteon Siren
- 1x - Quick Start Guide
