iDS-TCD403-BI

No Review

Add To Wishlist

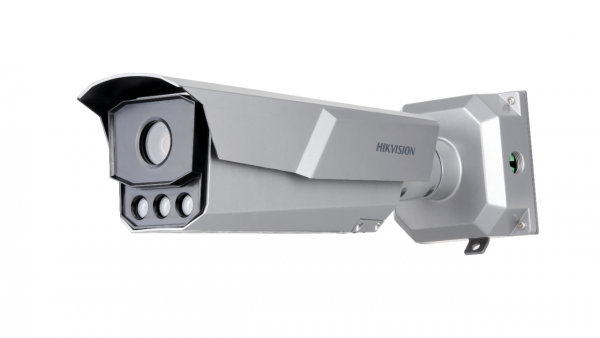

4 MP IR Traffic Flow Camera

Applicable to signal control system, traffic information service system, road traffic surveillance, etc.
High quality imaging with 4 MP resolution(1/1.8'' CMOS)
Multiple targets visualization in bi-directional 6 lanes with vertical coverage.
Information detection of multiple targets lane, speed, direction, etc.
Multiple traffic data collection: statistics and uploading of different lanes, including data of traffic flow, speed, status, queue, time headway, space headway, number of parking vehicle in area, space occupancy, time occupancy, etc. in 1 to 3,600 s.
Traffic evaluation data output, including queue length.
Two virtual coils for each lane. Signal output of vehicle entering and exiting virtual coils. Positions of virtual coils are adjustable.
Defog, HLC, WDR, and multiple white balance modes, satisfying various scenes.
Network and RS-485 data uploading.
Water and dust resistant (IP67) and vandal-resistant (IK10)
?

Video
Main Stream
50 Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720, 704 ? 576, 352 ? 288)

60 Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720, 704 ? 576, 352 ? 288)
Sub Stream
50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 352 ? 288)

60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 352 ? 288)
Third Stream
50 Hz: 25 fps (1280 ? 720, 704 ? 576, 352 ? 288)

60 Hz: 30 fps (1280 ? 720, 704 ? 480, 640 ? 480)
Video Compression
H.264 and H.265 encoding

Main stream: H.265/H.264/MJPEG

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline profile/Main profile/High profile
H.265 TypeBaseline profile/Main profile/High profile

Network
ProtocolsTCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
SecurityPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
Network StorageMicro SD/TF card (128 GB), local storage and CVR, NVR, ANPR
ClientHCM, HCM LITE, HikCentral Master
Web BrowserIE7+

Image SettingsRotation mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable via client software or web browser.
Day/Night SwitchAuto/Scheduled/Triggered by alarm in
Wide Dynamic Range (WDR)140 dB
Image EnhancementBLC, HLC, 3D DNR

Road Traffic And Vehicle Detection
Smart FunctionVehicle counting, traffic monitoring, traffic status release
Accuracy (Under Recommended Installation And Lighting Conditions)Vehicle counting accuracy > 95%

General
Firmware VersionV4.5.0
Operating SystemLinux
Power12 VDC to 24 VDC ? 20%, PoE (802.3at, class 4), Max. 12 W
MaterialAluminum alloy
DimensionWith package: 428.5 ? 120 ? 132.8 mm
WeightCamera: approx. 3.12 ? 0.5 kg (6.88 ? 1.1 lb)
Operating Condition
Temperature: -30 ?C to +70 ?C (-22 ?F to +158 ?F)

Humidity: 95% or less (non-condensing)

?
General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
