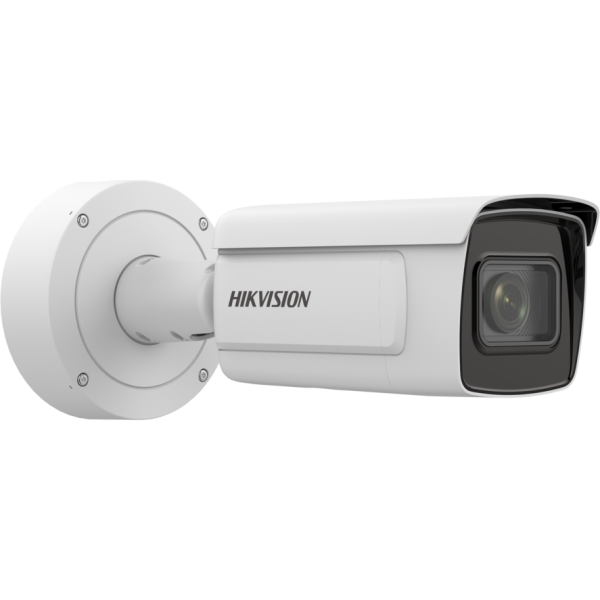

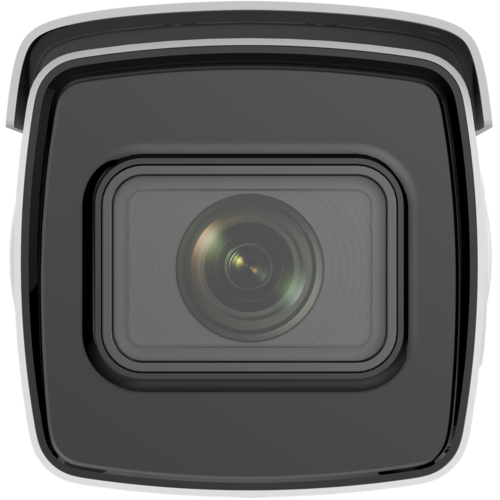

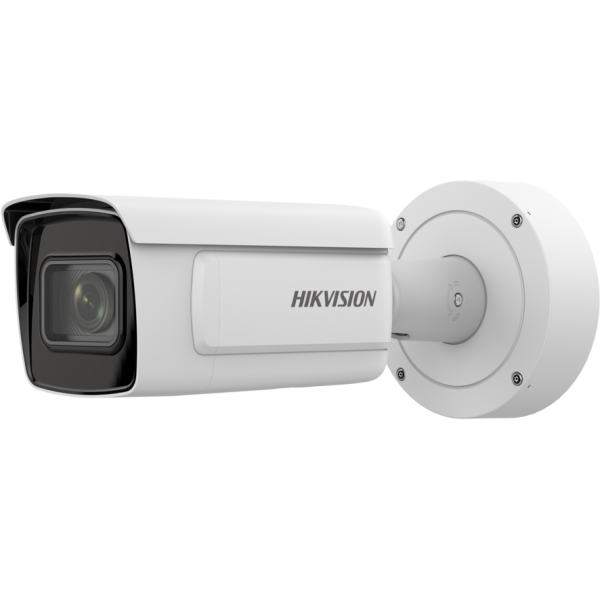

iDS-2CD7A86G0-IZHSY

iDS-2CD7A86G0-IZHSY Specifications

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter

  Blue glass module to reduce ghost phenomenon

• Lens
• Aperture

  2.8 to 12 mm: F1.2 to F2.5

  8 to 32 mm: F1.7 to F1.73

• Iris TypeP-iris
• Focal Length & FOV

  2.8 to 12 mm, horizontal FOV: 112.3? to 41.2?, vertical FOV: 58? to 23.1?, diagonal FOV: 137.3? to 47.3?

  8 to 32 mm, horizontal FOV: 41.8? to 14.9?, vertical FOV: 22.92? to 8.48?, diagonal FOV: 48.7? to 17?

• FocusAuto, semi-auto, manual

• DORI
• DORI

  Wide:

  2.8 to 12 mm: D: 87 m, O: 34.5 m, R: 17.4 m, I: 8.7 m

  8 to 32 mm: D: 218 m, O: 86.5 m, R: 43.6 m, I: 21.8 m

  Tele:

  2.8 to 12 mm: D: 216 m, O: 85.7 m, R: 43.2 m, I: 21.6 m

  8 to 32 mm: D: 580 m, O: 230.2 m, R: 116 m, I: 58 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range

  2.8 to 12 mm: 50 m

  8 to 32 mm: 100 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (3840 ? 2160, 3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280? 720)

  60 Hz: 30 fps (3840 ? 2160, 3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280? 720)

• Sub-Stream

  50 Hz: 25 fps (704 ? 480, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Third Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fourth Stream

  50 Hz: 25 fps (704 ? 480, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Fifth Stream

  50 Hz: 25 fps (704 ? 480, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeBaseline Profile/Main Profile/High Profile
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
• Target CroppingYes
• Bit Rate ControlCBR/VBR

• Audio
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Environment Noise FilteringYes
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
• Audio TypeMono sound
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

  Plug-in free live view: Chrome 45.0+, Firefox 52.0+

  Not recommended: Safari 11+, Edge

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR)120 dB
• SNRe 52 dB
• Image EnhancementBLC, HLC, Defog, 3D DNR
• Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
• Image StabilizationEIS
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24bit bmp format

• Interface
• Video Output1 Vp-p Composite Output (75 ?/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
• RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power OutputWith -Y: 12 VDC, max. 100 mA

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

• Deep Learning Function
• Multi-Target-Type Detection

  Supports simultaneous detection and capture of human body, face and vehicle

  Gets 7 face features, 13 human body features and 2 vehicle features

• Face Capture

  1. Detects up to 60 faces simultaneously

  2. Supports swing left and right from -60? to 60?, tilt up and down from -30? to 30?

  3. Uploads face with background and closed-up face pictures

• Face Comparison

  Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.

  Supports face library encryption

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

• General
• Power

  12 VDC ? 20%, 1.19 A, max. 14.28 W, three-core terminal block

  PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W

• Dimension

  Without -Y: ?144 ? 347 mm (?5.7" ? 13.7\")

  With -Y: ?140 ? 351 mm (?5.5 ? 13.8\") "

• Package Dimension405 ? 190 ? 180 mm (15.9" ? 7.5" ? 7.1")
• Approx. 1950 g (4.2 lb.)
• With Package WeightApprox. 3070 g (6.7 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-40 ?C to 60 ?C (-40 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General FunctionHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
• HeaterYes

• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014/A11:2017);

  BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
• Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
• Automotive And RailwayEN50121-4
• OtherPVC FREE
