Buy iDS-2CD7A26G0-IZHS(Y)(R) Online Dubai

?

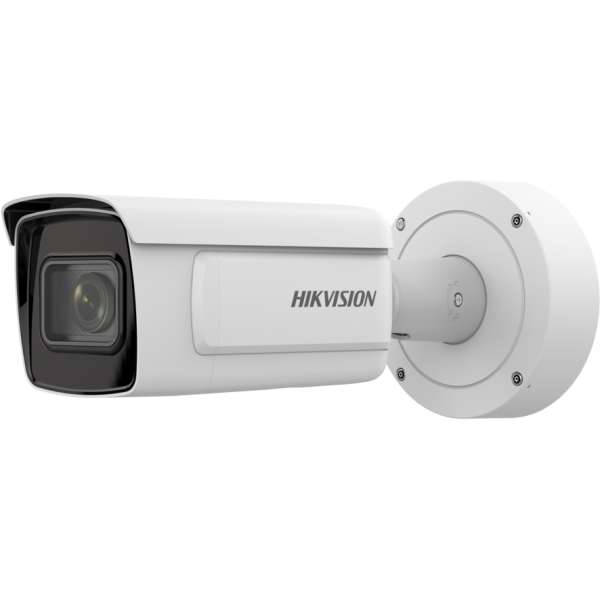

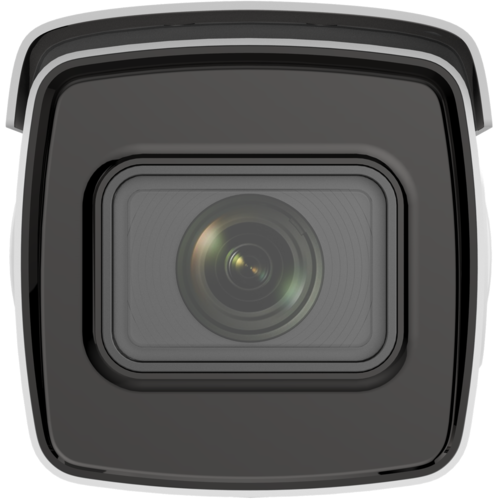

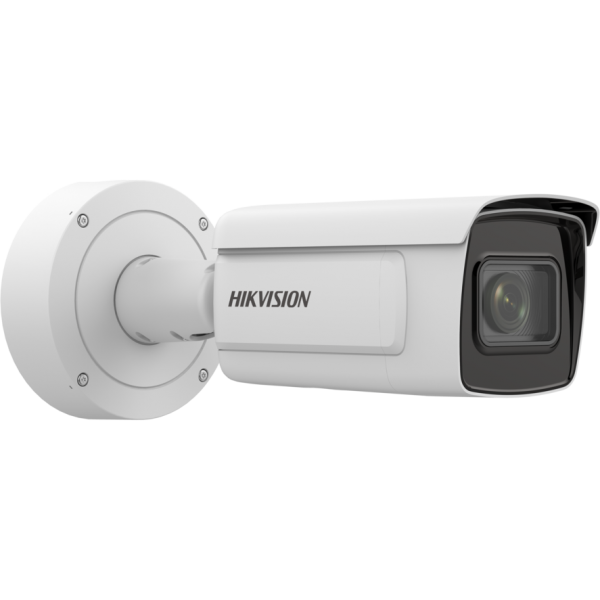

2MP DeepinView Moto Varifocal Bullet Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to 140 dB WDR technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • 5 streams to meet a wide variety of applications
  • Water and dust resistant (IP67) and vandal proof (IK10)
?
  • ?

  • ?

  • ?

  • ?

  • ?

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

iDS-2CD7A26G0-IZHS(Y)(R) Specifications

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution1920 ? 1080
  • Min. IlluminationColor: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & Night

    IR cut filter

    Blue glass module to reduce ghost phenomenon

  • Lens
  • Aperture

    2.8 to 12 mm: F1.2 to F2.5

    8 to 32 mm: F1.7 to F1.73

  • Iris TypeP-iris
  • Focal Length & FOV

    2.8 to 12 mm, horizontal FOV: 114.5? to 41.8?, vertical FOV: 59.3? to 23.6?, diagonal FOV: 141.1? to 48?

    8 to 32 mm, horizontal FOV: 42.5? to 15.1?, vertical FOV: 23.3? to 8.64?, diagonal FOV: 49.6? to 17.3?

  • FocusAuto, semi-auto, manual
  • DORI
  • DORI

    Wide:

    2.8 to 12 mm: D: 45 m, O: 17.9 m, R: 9 m, I: 4.5 m

    8 to 32 mm: D: 112.7 m, O: 44.8 m, R: 22.6 m, I: 11.3 m

    Tele:

    2.8 to 12 mm: D: 111.8 m, O: 44.3 m, R: 22.4 m, I: 11.2 m

    8 to 32 mm: D: 300 m, O: 119.0 m, R: 60 m, I: 30 m

  • Illuminator
  • Supplement Light TypeIR
  • IR Wavelength850 nm
  • Supplement Light Range

    2.8 to 12 mm: 50 m

    8 to 32 mm: 100 m

  • Smart Supplement LightYes
  • Video
  • Main Stream

    50 Hz: 50 fps (1920 ? 1080, 1280 ? 960, 1280? 720)

    60 Hz: 60 fps (1920 ? 1080, 1280 ? 960, 1280? 720)

  • Sub-Stream

    50 Hz: 25 fps (704 ? 480, 640 ? 480)

    60 Hz: 30 fps (704 ? 480, 640 ? 480)

  • Third Stream

    50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

    60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

  • Fourth Stream

    50 Hz: 25 fps (704 ? 480, 640 ? 480)

    60 Hz: 30 fps (704 ? 480, 640 ? 480)

  • Video Bit Rate32 Kbps to 8 Mbps
  • Fifth Stream

    50 Hz: 25 fps (704 ? 480, 640 ? 480)

    60 Hz: 30 fps (704 ? 480, 640 ? 480)

  • Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeBaseline Profile/Main Profile/High Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region Of Interest (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
  • Target CroppingYes
  • Audio
  • Environment Noise FilteringYes
  • Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
  • Audio TypeMono sound
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 20 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
  • User/Host

    Up to 32 users

    3 user levels: administrator, operator, and user

  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
  • Network Storage

    NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

    Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Plug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11

    Plug-in free live view: Chrome 45.0+, Firefox 52.0+

    Not recommended: Safari 11+, Edge

  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
  • Wide Dynamic Range (WDR)140 dB
  • SNRe 52 dB
  • Image EnhancementBLC, HLC, Defog, 3D DNR
  • Privacy Mask8 programmable polygon privacy masks, mask color or mosaic configurable
  • Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24bit bmp format
  • Image StabilizationEIS
  • Interface
  • Video Output1 Vp-p Composite Output (75?/CVBS) (Only for debugging)
  • Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
  • AudioWith -Y: 1 input (line in), 1 output (line out), 3.5 mm connector
  • Alarm2 input, 2 outputs (max. 24 VDC, 1 A)
  • RS-485With -Y: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
  • Reset KeyYes
  • Power OutputWith -Y: 12 VDC, max. 100 mA
  • Event
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception dettection, scene change detection, defocus detection
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
  • Deep Learning Function
  • Multi-Target-Type Detection

    Supports simultaneous detection and capture of human body, face and vehicle

    Gets 7 face features, 13 human body features and 2 vehicle features

  • Face Capture

    1. Detects up to 60 faces simultaneously

    2. Supports swing left and right from -60? to 60?, tilt up and down from -30? to 30?

    3. Uploads face with background and closed-up face pictures

  • Face Comparison

    Up to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total.

    Supports face library encryption

  • Perimeter Protection

    Line crossing, intrusion, region entrance, region exiting

    Support alarm triggering by specified target types (human and vehicle)

  • General
  • Power

    12 VDC ? 20%, three-core terminal block, 1.19 A, max. 14.28 W

    PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V), 0.396 A to 0. 295 A, max. 16.8 W

  • MaterialAluminum alloy body
  • Dimension

    Without -Y: ?144 ? 347 mm (?5.7" ? 13.7\")

    With -Y: ?140 ? 351 mm (?5.5 ? 13.8\") "

  • Package Dimension405 ? 190 ? 180 mm (15.9" ? 7.5" ? 7.1")
  • Approx. 1950 g (4.2 lb.)
  • With Package WeightApprox. 3070 g (6.7 lb.)
  • Startup And Operating Conditions-40 ?C to 60 ?C (-40 ?F to 140 ?F). Humidity 95% or less (non-condensing)
  • Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
  • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams
  • HeaterYes
  • Approval
  • EMC

    FCC (47 CFR Part 15, Subpart B);

    CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

    RCM (AS/NZS CISPR 32: 2015);

    IC (ICES-003: Issue 7);

    KC (KN 32: 2015, KN 35: 2015)

  • Safety

    UL (UL 62368-1);

    CB (IEC 62368-1:2014+A11);

    CE-LVD (EN 62368-1:2014/A11:2017);

    BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

    LOA (IEC/EN 60950-1)

  • Environment

    CE-RoHS (2011/65/EU);

    WEEE (2012/19/EU);

    Reach (Regulation (EC) No 1907/2006)

  • ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
  • Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
  • Automotive And RailwayEN50121-4
  • OtherPVC FREE

What's Included

Manuals
