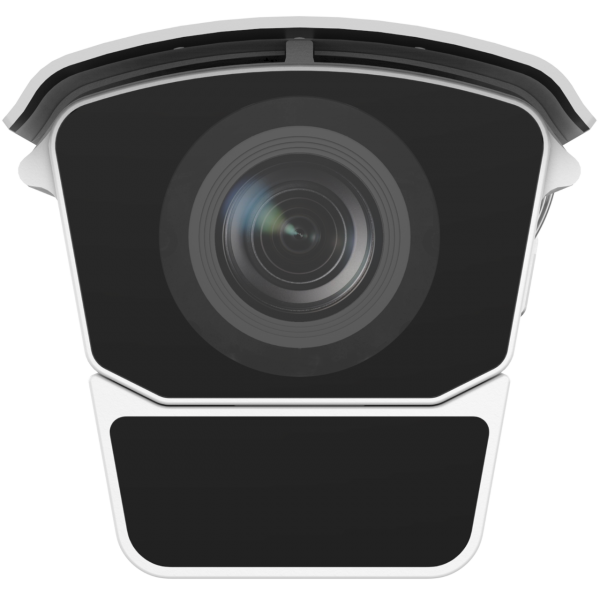

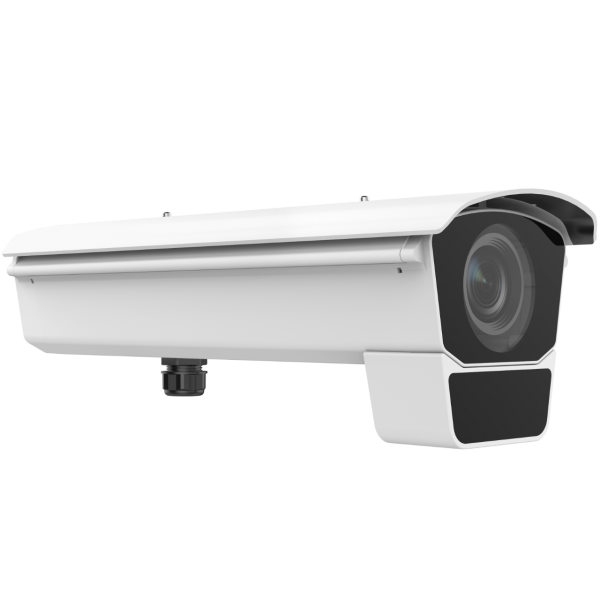

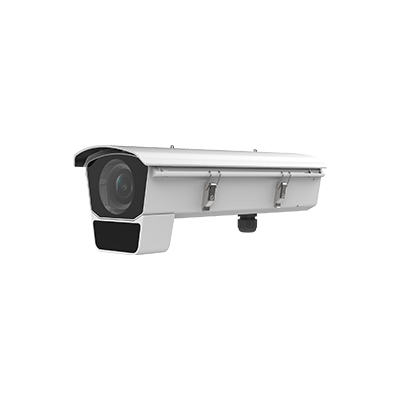

iDS-2CD70C5G0/E-IHSY(R)

iDS-2CD70C5G0/E-IHSY(R) Specifications

• Camera
• Image Sensor1/1.73 Progressive Scan CMOS
• Max. Resolution4000 ? 3000
• Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON); B/W: 0.002 Lux @ (F1.4, AGC ON)
• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter

  Blue glass module to reduce ghost phenomenon

• Lens
• Focal Length & FOV

  3.8 to 16 mm, horizontal FOV: 103.5? to 28.1?, vertical FOV: 77.3? to 21.1?, diagonal FOV: 129.3? to 35.0?

  11 to 40 mm, horizontal FOV: 36.9? to 11.5?, vertical FOV: 27.1? to 8.6?, diagonal FOV: 47.5? to 14.4?

• Lens MountCS mount
• Iris TypeP-iris
• Aperture

  3.8 to 16 mm: F1.4

  11 to 40 mm: constant F1.4 throughout the zoom range

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range

  3.8 to 16 mm: 80 m

  11 to 40 mm: 120 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (4096 ? 2160, 3840 ? 2160, 3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (4096 ? 2160, 3840 ? 2160, 3072 ? 1728, 2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  50 Hz: 20 fps (4000 ? 3000)

  60 Hz: 20 fps (4000 ? 3000)

• Sub-Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Third Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fourth Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fifth Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Custom Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/ H.264

  Sub-stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 support
• Region Of Interest (ROI)4 fixed regions for each stream
• Target CroppingYes

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• Smooth StreamingYes
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage

  microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local service: Chrome 41.0+, Firefox 30.0+

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
• Wide Dynamic Range (WDR)Digital WDR
• SNRe52 dB
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24 bit bmp format

• Interface
• Video Output1 Vp-p Composite Output(75 ?/CVBS) (For debugging only)
• Ethernet Interface1 RJ45 100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
• Audio-IHSY: 1 input (line in), 1 output (line out), 3.5 mm connector, 2 channels
• Alarm2 inputs, 2 outputs (max. 24 VDC, 1 A)
• RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA (supported by all power supply types)
• Fiber OpticalNo

• Event
• Basic EventMotion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing detection, up to 4 lines configurable

  Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

  Unattended baggage detection, up to 4 regions configurable

  Object removal detection, up to 4 regions configurable

  Scene change detection, audio exception detection, defocus detection

• Linkage

  Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

  Trigger recording: memory card, network storage, pre-record and post-record

  Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

  Trigger notification: HTTP, ISAPI, alarm output, Email

• Deep Learning Function
• Multi-Target-Type Detection

  Supports simultaneous detection of human body and face

  Gets 8 face features and 13 human body features

• Face Capture

  Detects up to 30 faces simultaneously;

  Supports swing left and right from -60? to 60?, tilt up and down from -30? to 30?;

• Face Comparison

  Up to 3 face libraries with up to 30000 faces each are configurable;

  Recognizes face identity via face modeling, grading and comparing to those in face library;

  Supports face library encryption.

• People Counting

  Supports counting, entering/exiting counting (track 30 targets simultaneously);

  Supports facial recognition;

  Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);

  Supports reporting alarms when detecting the face is the same as that in the face library.

• Queue Management

  Detects queuing-up people number, and waiting time of each person

  Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue

  Supports raw data export for further analysis

• Hard Hat Detection

  Detects up to 30 human targets simultaneously

  Supports up to 4 shield regions

• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types (human and vehicle)

  Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

• MetadataMetadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.

• General
• Power

  With extra load: 24 VDC ? 20%, 1.07 A, 25.4 W; 24 VAC ? 20%,, 1.64 A, 50/60 Hz, 26.8 W, three-core terminal block, reverse polarity protection;

  Po: 802.3bt, Type3, Class 5, 42.5 VDC to 57 VDC, 0.7 A to 0.5 A, 28 W

  With extra load\" means that an extra device is connected to and powered by the camera."

• Dimension465.3 ? 169.2 ?164.7 mm (18.33 ? 6.7 ? 6.53)
• Package Dimension615 ? 360 ? 225 mm (24.23 ? 14.2" ? 8.93)
• 3800 g (8.4 lb.)
• With Package Weight6000 g (13.2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-40 ?C to 65 ?C (-40 ?F to 149 ?F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian

• General FunctionAnti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks,flash log, password reset via e-mail, pixel counter
• HeaterYes

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
• Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
• Automotive And RailwayWith -R: EN50121-4
