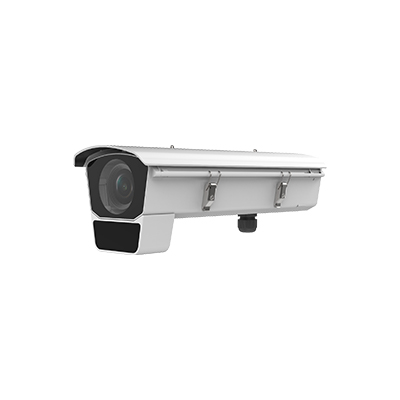

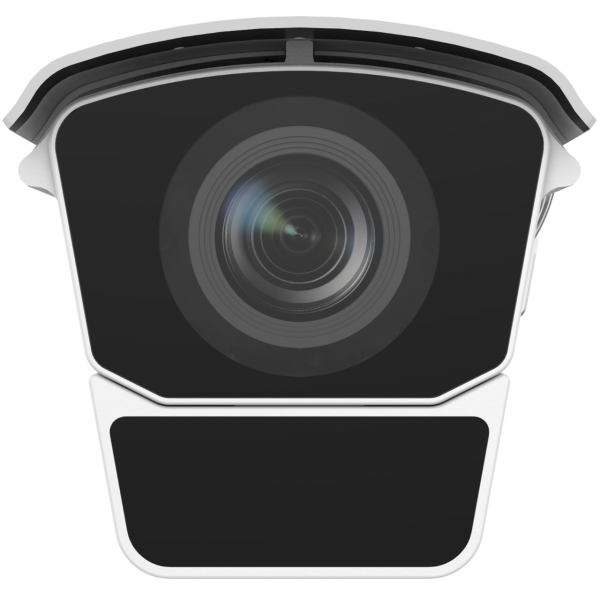

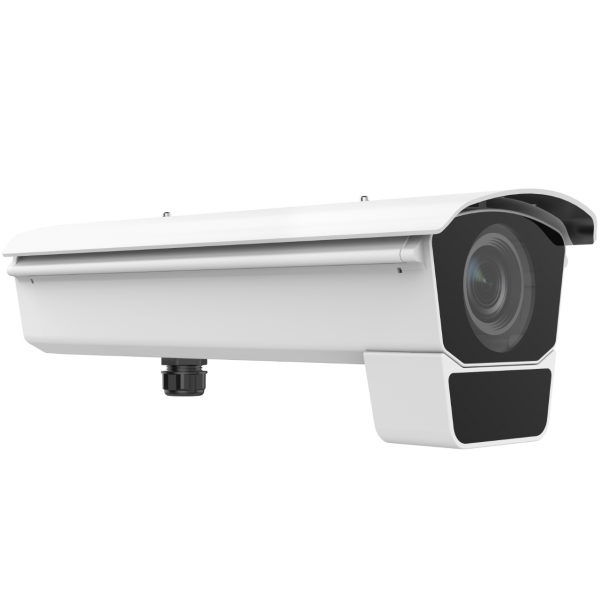

iDS-2CD7026G0/EP-IHSY

iDS-2CD7026G0/EP-IHSY Specifications

• Camera
• Image Sensor1/1.8" Progressive Scan CMOS
• Max. Resolution1920 ? 1080
• Min. Illumination

  Color: 0.0005 Lux @ (F1.2, AGC ON);

  B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR

• Shutter Time1 s to 1/100,000 s
• Day & Night

  IR cut filter

  Blue glass module to reduce ghost phenomenon

• Lens
• Focal Length & FOV

  3.8 to 16 mm, horizontal FOV: 109.1? to 29.6?, vertical FOV: 61.3? to 16.8?, diagonal FOV: 125.1? to 33.9?

  11 to 40 mm, horizontal FOV: 39.1? to 12.1?, vertical FOV: 21.4? to 6.8?, diagonal FOV: 45.8? to 13.9?

• Lens MountCS mount
• FocusManual
• Iris TypeP-iris
• Aperture

  3.8 to 16 mm: F1.4

  11 to 40 mm: constant F1.4 throughout the zoom range

• DORI
• DORI

  Wide:

  3.8 to 16 mm: D: 42.9 m, O: 17.0 m, R: 8.6 m, I: 4.3 m

  11 to 40 mm: 124.1 m, O: 49.3 m, R: 24.8 m, I: 12.5 m

  Tele:

  3.8 to 16 mm: D: 155.2 m, O: 61.6 m, R: 31.1 m, I: 15.5 m

  11 to 40 mm: 382.7 m, O: 151.9 m, R: 76.6 m, I: 38.3 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light Range

  3.8 to 16 mm: 80 m

  11 to 40 mm: 120 m

• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Third Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fourth Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)

• Fifth Stream

  50 Hz: 25 fps (704 ? 576, 640 ? 480)

  60 Hz: 30 fps (704 ? 480, 640 ? 480)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream/Third stream/Fourth stream/Fifth stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.265 and H.264 encoding
• Region Of Interest (ROI)4 fixed regions for each stream
• Target CroppingYes

• Audio
• Audio TypeMono sound
• Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
• Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)/8 to 320 Kbps (MP3)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
• Network Storage

  NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local service: Chrome 41.0+, Firefox 30.0+

• Image
• Image Parameters SwitchYes
• Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger, Video Trigger
• Wide Dynamic Range (WDR)140 dB
• SNRe 52 dB
• Image EnhancementBLC, HLC, Defog, 3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24bit bmp format
• Image StabilizationEIS

• Interface
• Video Output1 Vp-p Composite Output (75 ?/CVBS) (Only for debugging)
• Ethernet Interface1 RJ45 100 M/1000 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
• Audio1 input (line in), 1 output (line out), 3.5 mm connector
• Alarm2 inputs, 2 outputs (max. 24 VDC, 1A)
• RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA

• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
• Smart Event

  Intrusion detection, scene change detection, audio exception detection, defocus detection

  Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable

  Region entrance detection, up to 4 regions configurable

  Region exiting detection, up to 4 regions configurable

• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

• Deep Learning Function
• Perimeter Protection

  Line crossing, intrusion, region entrance, region exiting

  Support alarm triggering by specified target types

• Road Traffic And Vehicle Detection

  Blocklist and allowlist: up to 10,000 records

  Captures vehicle that has no license plate

  Support license plate recognition of motorcycles (only in checkpoint scenario)

  Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)

• MetadataMetadata of road traffic is supported.

• General
• Power

  24 VDC ? 20%, 0.9 A, max. 21.6 W, three-core terminal block

  24 VAC ? 20%, 0.93 A, max. 22.1 W, three-core terminal block

  PoE: 802.3bt, Type3, Class 5, 42.5V to 57 V, 0.58 A to 0.44 A, max. 24.6 W

• Dimension465.3 ? 169.2 ? 164.7 mm (18.3" ? 6.7" ? 6.5")
• Package Dimension615 ? 360 ? 225 mm (24.2" ? 14.2" ? 8.9")
• Approx. 3800 g (8.4 lb.)
• With Package WeightApprox. 6000 g (13.2 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-40 ?C to 65 ?C (-40 ?F to 149 ?F). Humidity 95% or less (non-condensing)
• Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
• General FunctionAnti-flicker, 5 streams, EPTZ, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• HeaterYes

• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11);

  CE-LVD (EN 62368-1:2014/A11:2017);

  BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005);

  LOA (IEC/EN 60950-1)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
• Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
• Automotive And RailwayWith -R: EN50121-4
• OtherPVC FREE
