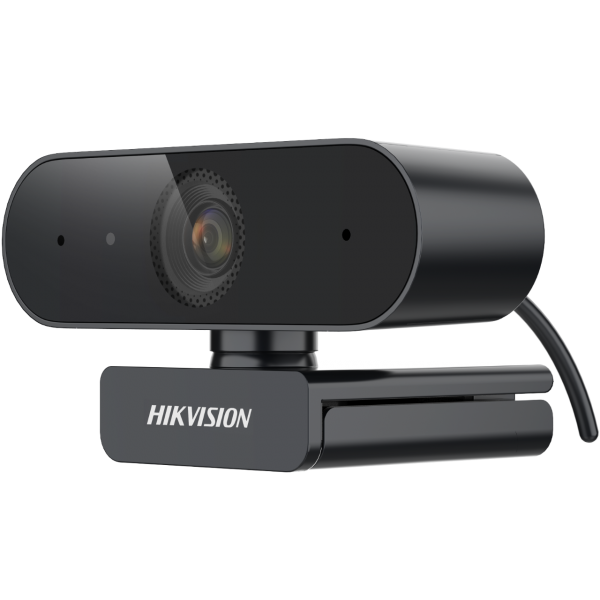

DS-U02P

DS-U02P Specifications

• Camera
• Image Sensor2 MP CMOS
• Signal SystemPAL/NTSC
• Resolution1920 (H) ? 1080 (V)
• Frame Rate

  MJPG:

  1920 ? 1080 @ 30/25 fps

  1280 ? 960 @ 30/25 fps

  1280 ? 720 @ 30/25 fps

  640 ? 480 @ 30/25 fps

  640 ? 360 @ 30/25 fps

  YUV:

  1920 ? 1080 @ 5 fps

  1280 ? 960 @ 5 fps

  1280 ? 720 @ 5 fps

  640 ? 480 @ 30 fps

  640 ? 360 @ 30 fps

• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Lens3.6 mm fixed focal lens
• Field Of Viewhorizontal FOV: 80?, vertical FOV: 50?, diagonal FOV: 88?
• Lens MountM8
• Day & Night24/7 Color Imaging
• Angle Adjustmentpan: 360?; tilt: -15? to 15?; ratation: 0?
• Cable Length1.5 m
• Depth Of Field0.5 m to

• Audio
• Audio Sampling Rate16 kHz

• Interface
• Video OutputUSB 2.0
• Audio InBuilt-in mic
• Operating SystemWindows 7/10, Android, Linux, macOS

• General
• Operating Conditions-10 ?C to 45 ?C, Humidity: 90% or less (non-condensing)
• Power SupplyDC5 V ? 5% (USB)
• ConsumptionMax. 1.6 W
• Dimension80.16 mm ? 48.6 mm ? 42.18 mm (3.16" ? 1.91" ? 1.66")
• Approx. 93 g (0.2 lb.)

• Accessory
• Packing List

  Camera ? 1

  Quick Start Guide ? 1
