DS-TSC300-44H

No Review

Add To Wishlist

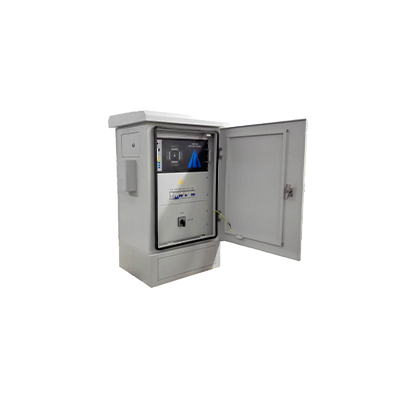

Traffic Signal Controller

Using ARM9 series 32bit chipwhich can provide strong calculate and communication ability
Modular design methodeasy to install and maintenance
Using controllable silicon to control the signal lightkeeping the device stable
Using open, standard communication protocol, easy to extend
Equipped with control and display panel, which can real-time monitor and manually adjust the signal status
Auto monitor for the status of communication devices and light device, it will alert when problem happens and react automatically
Equipped with independent yellow flash controller, not controlled by firmwareenhancing the security
GPS TimingOptional

Items
Signal Light Output
44-chs independent control output

Signal Channel Consumption 800W
Vehicle Detect PanelN/A
Light Control Panel4
Cabinet1
GPS InterfaceOptional 1 GPS Satellite Signal Real-time TimingOptional
Network Interface1 100M Ethernet Interface
Other Interfaces2 RS-232; 2 RS-485; 1 USB
External InputSupport 8-chs Pedestrian Button Input
Wireless Control InterfaceSupport
Operating VoltageAC220V?44V50Hz?2Hz
Operating Ambient Temperature-40^+70
Operating Ambient Humidity45%~95%non-condensing
Power Dissipation<35W
Dielectric Strength100M?
Level Of ProtectionIP54 (Cabinet)
Dimensions
Mainframe482.5mm(W)?221mm(H)?290mm(L)

ControllerCabinet 600mm(W)?1084mm(H)?450mm(L)
