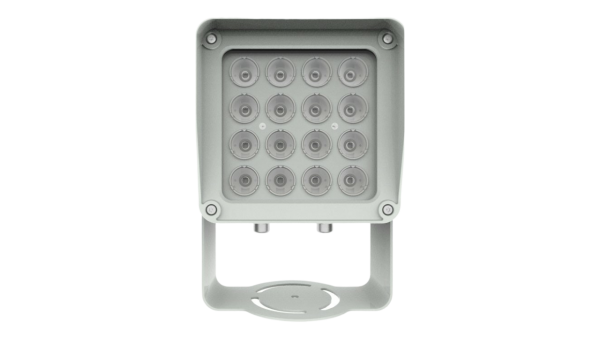

DS-TL2000A-L1

Product Details

• Supplement Light
• Light TypeHigh-power White Light LED
• LED Lamp Beads16
• Color Temperature5000K to 7000K
• Angle Of Light10?
• CoverageSingle lane
• Effective Distance16-25 m
• Trigger MannerTTL level (switch trigger optional)
• Trigger Level4 to 6 V (High level trigger)
• Trigger Frequency15 to 250 Hz
• Trigger Duty Ratio1% to 39% (Enter the protection state at Duty Radio e 40%)
• Response Timed20us
• Day And Night FunctionSupport ambient brightness detection, and automatic start-up at low illumination (optional)
• RS4851-chsupport PC or camera connection (optional)
• Synchronous Interface1-ch flicker trigger input, 1-ch capture trigger input and 1 channel synchronous flicker output (optional)
• Parameter ConfigurationSupports internal parameter settings, such as turn-on threshold of day and night function, flash and ultra-high frequency flash delay setting
• Service Lifee50000 H
• Housing MaterialDie-cast aluminum
• Power Supply220 VAC ? 20%, 47 to 63 Hz; 110 VAC ? 20%, 47 to 63 Hz
• ConsumptionMax. 36 W (Determined by control model)
• Operating Temperature

  -40 ?C to 70 ?C (-40 ?F to 158 ?F)

  ?

• Operating Humidity10% to 90%, no condensation
• Weather Proof RatingIP65
• Dimension (W ? H ? D)128 ? 216 ? 159 mm (5.0 ? 8.5 ? 6.3 inch)
• Mounting ModelSupport front-mounted installation (bracket rotation angle: -90? to 90?)
• 2.72 kg (6.00 lb)
