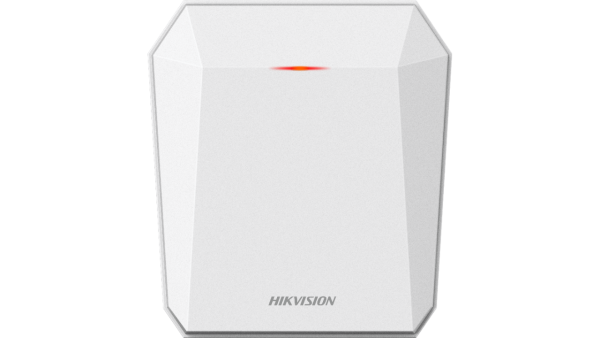

DS-PR1-60V

DS-PR1-60V Specifications

• Detection Performance
• Detection Range60 m
• Detection Angle100?
• Velocity Measurement Accuracy? 0.55 m/s
• Velocity Range- 8.7 to 8.7 m/s
• Range Measurement Accuracy? 5 m
• Radar Transmit Powerd20 dBm
• Date Fresh Rate6 frames / s
• Microwave Frequency24.05 ~ 24.25GHz
• Max. Target Number32

• Software Features
• ScheduleAuto Arm/Disarm Schedule
• Configuration ToolsWeb / iVMS-4200
• Firmware Undate ToolsWeb / iVMS-4200

• Hardware Features
• Tamper-ProofTampering alarm
• Netowrk Interface1 RJ45 10M/100M/1000M self-adaptive, PoE

• Electrical Characteristics
• Power SupplyStandard PoE / 12VDC
• Power Interface802.3at standard PoE or 12VDC
• Operation Humidity10% to 90%
• Operation Temperature-40?C to 65?C
• Power Consumption16W

• Wireless Transmission
• RF ModulationFMCW

• Display
• IndicatorDual-color LED

• General
• IK RateIK09
• IP RateIP67
• Installation MethodMultiple installations with different brackets
• Installation Height1.2 - 4m (Recommend Height: 2.5m)
• Dimension(WxHxD)

  206 mm ? 228 mm ? 61 mm (8.11" ?

  8.98 ? 2.40\")"

• Anti-CorrosionNEMA 4X
• Application ScenarioOutdoor
• Shell MaterialPC+ABS
• ColorWhite
• 1.84 kg (4.06 lb)

• Device Management
• Alarm Output

  4 Relay Outputs(NO/NC)

  4-ch current output: 0.5A 125 VAC/1 A 30 VDC

• Zones8

• Report Method
• ProtocolHTTP, DNS, NTP, TCP, UDP, DHCP, ARP, SSH

What's Included

Manuals
