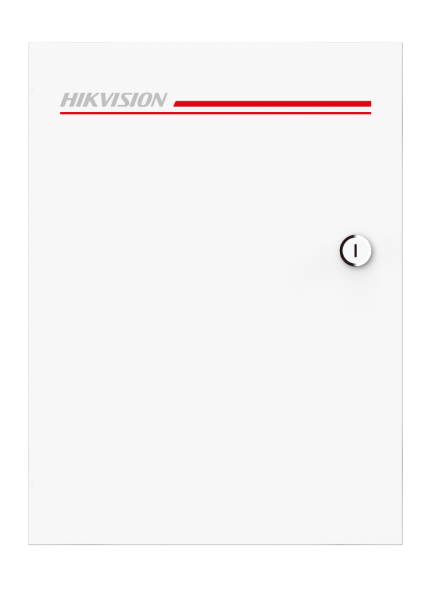

DS-PHA64-W4M

DS-PHA64-W4M Specifications

• Software Features
• Partition8
• Zones64
• Exception DetectionCommunication failure alarn, detection alarm
• Tamper-ProofTampering alarm
• ScheduleAuto Arm/Disarm Schedule
• SMS Notificationsupport (with GPRS/3G/4G module)
• Phone Call NotificationN/A
• Phone Numbers8 (with GPRS/3G/4G module)
• Firmware Undate ToolsWeb / iVMS-4200/Hik-Connect
• Configuration ToolsWeb / iVMS-4200/Hik-Connect
• ApplicationiVMS-4200 (client software) Hik-Connect (mobile client)
• ProtocolISAPI: Supports client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC09: ARC accessible (CID/SIA)
• IC Card12 (with DS-PK-LRT keypad)
• User

  Installer: 1

  Administrator: 1

  Manufactuer:1

  Operator: 45

• Onboard Video Clips4
• Onboard Real Time Video64

• Hardware Features
• Alarm Input8 on-board zones, and 56 wired/wireless zones expadable
• Alarm Output

  4 on-board outputs, and 60 wired/wireless outputs

  expadable

• Siren1 wired siren (on-board connection) 2 wireless sirens
• Netowrk Interface1, RJ45 10M/100M Ethernet Interface
• Serial PortRS232
• Battery Port/
• PSTN1, PSTN expander interface
• BusRS485
• Indicator4 for status 1 for alarm

• RF Transmission
• RF Frequency433MHz / 868MHz (with DS-PM-RSWR-433 / DS-PM-RSWR-868)

• Electrical Characteristics
• Power Supply12VDC / Storage battery

• Wireless Transmission
• Wired Network10M/100M Ethernet
• Cellular NetworkSupports report push- notification to ARC & Cloud (with 3G/4G/GPRS module)
• Wi-Fi Standard802.11b/g/n
• Wi-Fi Encryption

  64/128-bit WEP,WPA/

  WPA2,WPA-PSK/WPA2-

  PSK,WPS

• General
• Operation Temperature-10 to 55 (-4 ?F to +122 ?F)
• Operation Humidity10% to 90%
• Shell MaterialMetal Case
• Dimension(WxHxD)

  351.4 mm (13.8") ? 261.4 mm (10.3\") ? 93.3

  mm (3.7)"

• Application ScenarioIndoor
• Color/

• Device Management
• Keyfob8
• Wireless Siren2
• Keypad9
• Software Features
• Partition8
• Zones64
• Exception DetectionCommunication failure alarn, detection alarm
• Tamper-ProofTampering alarm
• ScheduleAuto Arm/Disarm Schedule
• SMS Notificationsupport (with GPRS/3G/4G module)
• Phone Call NotificationN/A
• Phone Numbers8 (with GPRS/3G/4G module)
• Firmware Undate ToolsWeb / iVMS-4200/Hik-Connect
• Configuration ToolsWeb / iVMS-4200/Hik-Connect
• ApplicationiVMS-4200 (client software) Hik-Connect (mobile client)
• ProtocolISAPI: Supports client software and web client Cloud P2P: Supports cloud P2P privacy protocol DC09: ARC accessible (CID/SIA)
• IC Card12 (with DS-PK-LRT keypad)
• User

  Installer: 1

  Administrator: 1

  Manufactuer:1

  Operator: 45

• Onboard Video Clips4
• Onboard Real Time Video64
• Hardware Features
• Alarm Input8 on-board zones, and 56 wired/wireless zones expadable
• Alarm Output

  4 on-board outputs, and 60 wired/wireless outputs

  expadable

• Siren1 wired siren (on-board connection) 2 wireless sirens
• Netowrk Interface1, RJ45 10M/100M Ethernet Interface
• Serial PortRS232
• Battery Port/
• PSTN1, PSTN expander interface
• BusRS485
• Indicator4 for status 1 for alarm
• RF Transmission
• RF Frequency433MHz / 868MHz (with DS-PM-RSWR-433 / DS-PM-RSWR-868)
• Electrical Characteristics
• Power Supply12VDC / Storage battery
• Wireless Transmission
• Wired Network10M/100M Ethernet
• Cellular NetworkSupports report push- notification to ARC & Cloud (with 3G/4G/GPRS module)
• Wi-Fi Standard802.11b/g/n
• Wi-Fi Encryption

  64/128-bit WEP,WPA/

  WPA2,WPA-PSK/WPA2-

  PSK,WPS

• General
• Operation Temperature-10 to 55 (-4 ?F to +122 ?F)
• Operation Humidity10% to 90%
• Shell MaterialMetal Case
• Dimension(WxHxD)

  351.4 mm (13.8") ? 261.4 mm (10.3\") ? 93.3

  mm (3.7)"

• Application ScenarioIndoor
• Color/
• Device Management
• Keyfob8
• Wireless Siren2
• Keypad9
