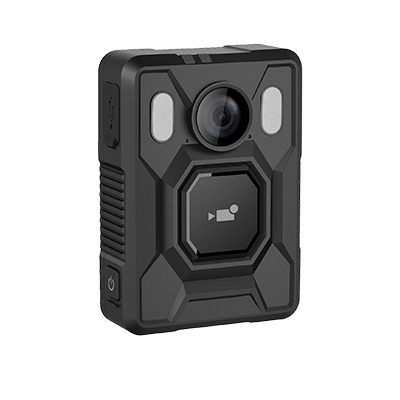

DS-MCW405

DS-MCW405 Specifications

• Sensor
• Type1/3 CMOS
• FOV

  Horizontal FOV: 102?

  Vertical FOV: 53?

  Diagonal FOV: 127?

• Video Parameters
• Video Input1080p
• Video CompressionH.264, H.265
• Video Resolution1920 ? 1080, 1280 ? 720, 720 ? 576
• Main Stream1080p/25 fps
• Sub-Stream720p/25fps
• Video Format.mp4
• ShutterDigital shutter
• Day & NightIR cut filter with auto switch
• White BalanceAuto
• Flashing LightSupported
• Laser PositioningSupported

• Storage
• CapacityA built-in storage chip of 32 GB

• Wireless Transmission
• Wi-Fi

  DS-MCW405/32G: don't support

  DS-MCW405/32G/GPS/WIFI: support,802.11b/g/n

  802.11b/g/n

• Others
• ButtonsPower switch, recording button, tag button, mute button.
• USB InterfaceMini USB 2.0
• ChargingCharging via USB interface
• BatteryA battery with 2,800 mAh capacity which can record videos up to 12 hours in 720p resolution and 10 hours in 1080p resolution.

• General
• Working Temperature-20 ?C to +55 ?C (-4 ?F to +131 ?F)
• Working Humidityd 90%

• Body camera: 107 g (without shoulder clip) (0.2 lb)

  With package: approx. 350 g (0.8 lb)

  ?

• Ingress Protection LevelIP67
• Drop Resistant2 m
• Dimensions (L ? W ? H)75 ? 55 ? 24 mm (3.0 ? 2.2 ? 0.9 inch)

• Positioning
• Satellite PositioningBuilt-in GPS module
