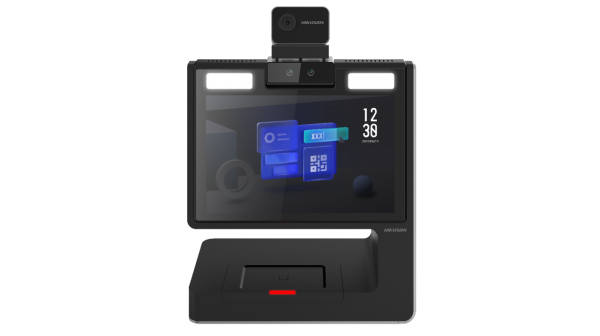

DS-K5032-3XFD

DS-K5032-3XFD Specifications

• System
• Operation SystemAndroid 7.1.2

• Temperature Measurement
• Temperature Range30 ?C to 45 ?C (86 ?F to 113 ?F)
• SensorVanadium Oxide uncooled sensor
• Resolution120 ? 160
• Frame Rate25 fps
• Measurement Accuracy0.1 ?C
• Measurement Deviation? 0.5 ?C, without black body calibration
• Measuring Distance0.3 to 2 m

• Display
• Size

  For administrator: 10.1-inch LCD touch screen

  For visitor: 10.1-inch visitor screen

• Resolution1280 ? 800

• Video
• Pixel2 MP
• Lens2
• WDRSupport

• Audio
• Audio OutputBuilt-in loudspeaker

• Network
• Wired Network10/100/1000 M self-adaptive
• Wi-FiSupport

• Interface
• Network Interface1
• Power InterfaceRound
• USB2

• Capacity
• Visitor Record150,000

• Authentication
• Card TypeMifare 1 card
• Card Reading Frequency13.56 MHz
• Card Reading Distance0 to 4 cm
• Card Reading Duration 1 s

• General
• IndicatorRed/green indicator
• Power Supply12 VDC/3 A
• Working Temperature-10  to 50  (14 ?F to 122 ?F)
• Working Humidity10 to 90
