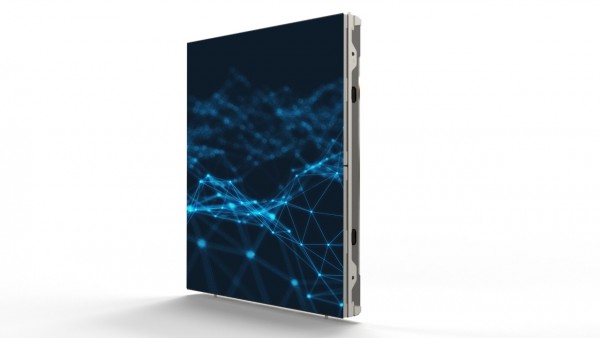

DS-D4425FI-CAF(B)

No Review

Quantity


Add to Cart on WhatsApp

Buy DS-D4425FI-CAF(B) Online Dubai

?

P2.5 Fine Fixel Pitch LED Display Unit

  • Seamlessly splice images in rows and columns.
  • Easily form standard 1920 ? 1080 and 3840 ? 2160 screens, achieving high definition dot-by-dot display.
  • Automatically adapt signal sources to screens without the help of a video processing equipment.
  • Easily optimize images with low resolution by improving definition, contrast and saturation with Pix Master technology.
  • Dynamically enhance image parameters such as contrast, sharpness, saturation, color temperature and gamut to get the image more vivid.
  • A signal input of 4K resolution at 30 Hz, and an output of up to 4K resolution for a single device.
  • Use the Hikvision remote control (optional) to navigate through menu after access to the multi-functional card.
  • Automatically remove moisture to protect lamp boards from water damage when the device is kept in a humid environment or left unused for a long time.
  • Back up signals and power supplies (optional) to maintain a reliable system.
  • Use the sending card to input HDMI, DVI, and DP signals.
  • Network interface output.
  • Remote configuration via the debugging network interface.
  • Easy to disassemble lamp board, power supply, and receiving card on the front side with modular unit structure.
  • Precise fool-proof design of lamp boards with magnetic adsorption to prevent wrong installation.
  • Three-axis XYZ structure designed to perfectly adjust the flatness of the entire screen.

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-D4425FI-CAF(B) Specifications

  • Cabinet
  • Pixel ConfigurationSMD 3-in-1 LED
  • Pixel Pitch CategoryP2.5
  • Pixel Pitch2.5 mm
  • Modules Component2 x 2
  • Dimensions (W ? H ? D)480 mm x 540mm x 54 mm (18.90" ? 21.26" ? 2.12")
  • Resolution192 x 216
  • Area0.2592 m?2;
  • 6.9kg15.21lb
  • Pixel Density160000 dots/m?2;
  • Lamp Board Housingno housing
  • Cabinet MaterialDie-cast aluminum
  • Maintenance MethodFront maintenance for all components
  • Cabinet Flatness0.1 mm
  • Protection LevelFront protection level IP5X
  • Display
  • White Balance Brightness800 cd/m?2;
  • Color Temperature3000 K to 10000 K adjustable
  • Viewing AngleHorizontal 160?, vertical 160?
  • Contrast Ratioe 5000:1
  • Color Uniformityd ? 0.003Cx Cy
  • Brightness Uniformitye 97
  • Processing Performance
  • Driving MethodConstant current driving
  • Frame Frequency60 Hz
  • Refresh Rate3840 Hz
  • Grey Level16 bit
  • Display Color281 trillion
  • Power
  • Power Supply110~220 VAC ? 15%
  • Max. Consumptiond 600 W/m?2;
  • Average Consumption< 200 W/m?2;
  • Working Environment
  • Working Temperature-10-40
  • Working Humidity10%~85%RH
  • Storage Humidity10%~85%RH
  • Storage Temperature-20~60
  • General
  • Gross Weight40 Kg (88.2 lb)
  • Package Dimension (W ? H ? D)598mm ? 467mm ? 763mm (23.54" ? 18.38" ? 30.04") 4in1
  • LifespanLamp 100,000 hours
