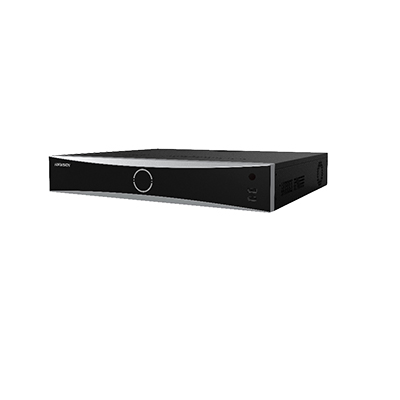

DS-7916NXI-I4/16P/S

DS-7916NXI-I4/16P/S Specifications

• Facial Recognition
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture d 512 KB, total capacity d 150 MB)
• Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
• Face Picture Comparison4-ch face picture comparison alarm

• Perimeter Protection
• Human/Vehicle Analysis

  Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total

• Video And Audio
• IP Video Input

  16-ch

  Up to 12 MP resolution

• Incoming Bandwidth320 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI 1 Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz, HDMI1/VGA simultaneous output
• HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz, HDMI2/VGA independent output
• VGA Output

  1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,

  HDMI1/VGA simultaneous output

• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)

• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
• Recording Resolution12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback16-ch
• Decoding Capability16-ch @ 1080p (30 fps)
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Live View Window Division1/2/4/6/8/9/16
• Aux Port Window Division1/2/4/6/8/9/16
• Playback ModeNormal/Smart, Event, Tag, Eternal File
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2

• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP", HTTP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• PoE
• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Powerd 200 W
• StandardIEEE 802.3 af/at

• Auxiliary Interface
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• SATA4 SATA interfaces supporting hot-plug
• ESATA1 eSATA interface
• CapacityUp to 10 TB capacity for each disk
• Alarm In/Out16/8
• USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0

• General
• Power Supply

  100 to 240 VAC, 50 to 60 Hz

  Total power: d 360 W

• Consumptiond 30 W (without HDD)
• Working Temperature-10  to 55  (14 to 131 )
• Working Humidity10% to 90%
• Chassis19-inch rack-mounted 1.5U chassis
• Dimension (W ? D ? H)445 ? 400 ?75 mm ( 17.5"? 15.7" ? 3.0")
• d 7 kg (15.4 lb) (without HDD)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
