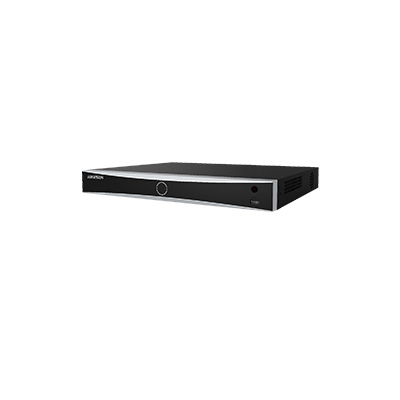

DS-7616NXI-I2/S

DS-7616NXI-I2/S Specifications

• Facial Recognition
• Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture d 512 KB, total capacity d 150 MB)
• Face Picture Comparison4-ch face picture comparison alarm
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP , H.264/H.265)

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• Video And Audio
• IP Video Input16
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)

• Decoding
• Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
• Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Playback ModeNormal/Smart, Event, Tag, Eternal File
• Synchronous Playback16-ch
• Live View Window Division1/4/6/8/9/16
• Aux Port Window Division1/4/6/8/9/16
• Decoding Capability16-ch @ 1080p (30 fps)
• Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2

• Network
• Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0

• General
• Power Supplyd 40 W
• Consumptiond 15W
• Working Temperature-10^55
• Working Humidity10^90
• Chassis1U
• Dimension (W ? D ? H)385 ? 315 ?52 mm ( 11.6"? 9.5" ? 1.6")
• d 1.6 kg (3.5 lb)
