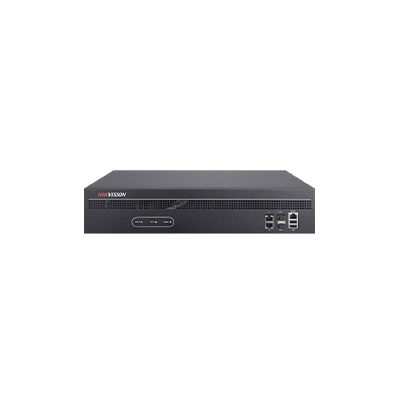

DS-6910UDI(B)

No Review

The description goes here

Dhs 5.00 Dhs 40.00 Dhs 5.00

Add To Wishlist

?

4K Decoder

Provides HDMI (adaptable to DVI-D) and BNC output interfaces.
Up to 4K (3840 ? 2160@30Hz) via HDMI output interfaces (only for odd interface).
H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
PS, RTP, TS, ES, HIK encapsulation formats.
Three encoding levels: baseline, main, and high-profile.
G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Two decoding modes: active decoding and passive decoding.
Remote video files' decoding output.
Supports two-way audio via client software.
Provides VGA and DVI input interfaces.
Supports window opening, window roaming and window split.
Supports multi-screen control with PC installed with RSC server.
Gets stream and decodes via URL and RTSP from encoding devices.
Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.

Product Details

Specifications

Input/Output
InputVGA, DVI-I
Input ResolutionVGA, DVI-I: 1080p: 1920 ? 1080@50/60 Hz, 720p: 1280 ? 720@50 Hz/60 Hz
OutputHDMI ? 10, BNC ? 5 (DB15 ? 2)
Output Resolution
HDMI:

4K: 3840 ? 2160@30 Hz ( for odd interface only)

1080p: 1920 ? 1080@50/60 Hz

720p: 1280 ? 720@50 Hz/60 Hz

BNC:

PAL: 704 ? 576, NTSC: 704 ? 480

Decoding
Decoding ResolutionUp to 24MP (only for 3 encoder tracks mode)
Decoding Channel80-ch
Decoding Capability
24MP@30fps: 5-ch,

12MP@20fps: 10-ch,

8MP@30fps: 20-ch,

5MP@30fps: 30-ch,

3MP@30fps: 50-ch,

1080p@30fps: 80-ch
Split Screen1/4/6/8/9/12/16/25/36

Interface
Network Interface
RJ45 interface ? 2, 10/100/1000 Mbps adaptive

Optic interface ? 2, 100 base-FX/1000 base-X

An RJ45 interface and an optic interface form a combo.
Serial InterfaceRS-232 (RJ45) ? 1, RS-485 ? 1
Audio Output10 (DB15 ? 2)
Two-Way Audio In1 (3.5 mm connector, 2.0 Vp-p, 1 K?)
Two-Way Audio Out1 (3.5 mm connector, 2.0 Vp-p, 1 K?)
Alarm In8
Alarm Out8

General
Power Supply100 to 240 VAC
Power Consumptiond 108 W
Dimensions(W ? D ? H)440 mm ? 321 mm ? 88 mm (17.32 inch ? 12.64 inch ? 3.46 inch)
Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity10% to 90%
d 6.4 kg (14.11 lb)

What's Included

Manuals
