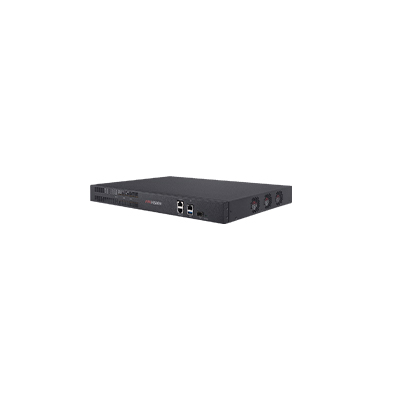

DS-6904UDI(B)

No Review

Add To Wishlist

4K Decoder

Provides HDMI (adaptable to DVI-D) and BNC output interfaces.
Up to 4K (3840 ? 2160@30Hz) via HDMI output interfaces (only for odd interface).
H.265+/H.265, H.264+/H.264, Hik264, MPEG4 and MJPEG video compression.
PS, RTP, TS, ES, HIK encapsulation formats.
Three encoding levels: baseline, main, and high-profile.
G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Two decoding modes: active decoding and passive decoding.
Remote video files' decoding output.
Provides DVI input interface.
Supports window opening, window roaming and window split.
Supports multi-screen control with PC installed with RSC server.
Gets stream and decodes via URL and RTSP from encoding devices.
Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
You can configure what the video wall shows when decoding ends and streaming fails via the Web browser and client software.
Configurable LED width and height parameters when the LED is connected.

Input/Output
InputHDMI, DVI-I
Input Resolution4K: 3840 ? 2160@30 Hz (only for HDMI), 1080p: 1920 ? 1080@50/60 Hz, 720p: 1280 ? 720@50 Hz/60 Hz
OutputHDMI ? 4, BNC ? 2
Output Resolution
HDMI:

4K: 3840 ? 2160@30 Hz ( only for odd interface), 1080p: 1920 ? 1080@50/60 Hz, 720p: 1280 ? 720@50 Hz/60 Hz

BNC:

PAL: 704 ? 576, NTSC: 704 ? 480

General
Power Supply100 to 240 VAC
Power Consumptiond 70 W
Dimensions(W ? D ? H)440 mm ? 320.8 mm ? 44.5 mm (17.32 inch ? 12.63 inch ? 1.75 inch)
Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity10% to 90%
d 5.2 kg (11.46 lb)
