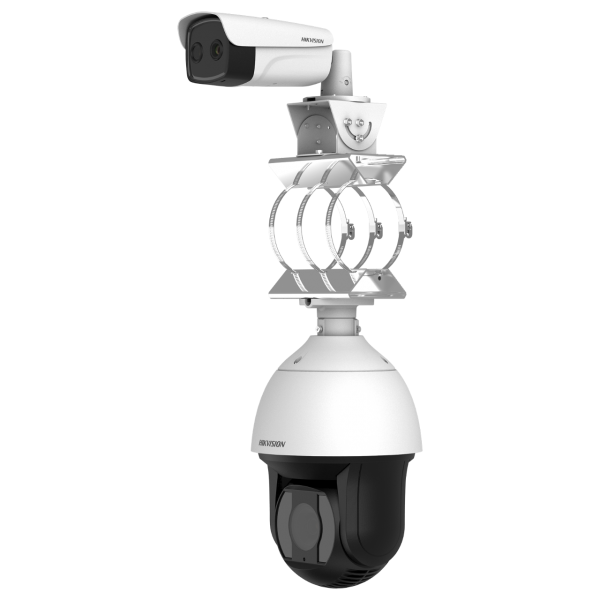

DS-2TX3742-25P/P

No Review

Quantity

Dhs 40.00

?

Thermal Smart Linkage Tracking System

  • 384 ? 288 resolution thermal image, high sensitivity sensor, adjustable contrast
  • Thermal image processing: Adaptive AGC, DDE, 3D DNR, NETD d 35 mK (@25 ?C,F#=1.0)
  • PTZ camera with 4MP image, 42 ? optical zoom and 500 m IR supplement
  • Intelligent and persistent analytics working within the linkage system
  • One-touch connection and automatic alignment between the images of bi-spectrum bullet camera and optical PTZ camera
  • ?

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TX3742-25P/P Specifications

  • System Function
  • Click LinkageOne-Touch connection between bi-spectrum bullet camera and PTZ camera beforehand via VMS client
  • Tracking ModeManual/Auto
  • Manual TrackingDrawing an area in VMS client within the field of the bullet camera, leading the PTZ camera zooming in
  • Multi-Targets TrackingUp to 30 targets simultaneously
  • Event TrackingIntrusion Detection, Line Crossing Detection
  • Tracking DurationConfigurable in VMS client for PTZ tracking
  • Temperature Measurement3 temperature measurement rule types; 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range- 20 ?C to 150 ?C (- 4 ?F to 302 ?F)
  • Temperature Accuracy? 8 ?C (? 14.4 ?F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Bullet Camera- Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution384 ? 288
  • Pixel Pitch17 ?m
  • Spectral Range8 ?m to 14 ?m
  • NETD (Noise Equivalent Temperature Difference)d 35 mk (@ 25 ?C,F# = 1.0)
  • Focal Length25 mm
  • IFOV0.68 mrad
  • Field Of View14.9? ? 11.2? (H ? V)
  • Min. Focusing Distance13m
  • ApertureF1.0
  • Digital Zoom?2, ?4, ?8
  • Bullet Camera- Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution2688 ? 1520, 4 MP
  • Shutter Speed1s to 1/100,000s
  • Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
  • Focal Length12 mm
  • Field Of View25.25? ? 14.44? (H ? V)
  • ApertureF1.6
  • WDR120 dB
  • Bullet Camera- General
  • Main Stream

    Optical channel

    50 HZ: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

    60 HZ: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

    Thermal channel

    25 fps (1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288, 320 ? 240)

  • Sub-Stream

    Optical channel

    50 HZ: 25 fps (704 ? 576, 352 ? 288, 176 ? 144)

    60 HZ: 30 fps (704 ? 480, 352 ? 240, 176 ? 120)

    Thermal channel

    25 fps (704 ? 576, 352 ? 288, 320 ? 240)

  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

  • Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/OPUS/PCM
  • Alarm Input

    2, alarm input (0-5 VDC)

    2, alarm output

  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Audio Input

    1, 3.5 mm Mic in/Line in interface.

    Line input: 2-2.4 V [p-p], output impedance: 1 K? ? 10%

    ?

  • Audio OutputLinear level, impedance: 600 ?
  • Communication Interface

    1, RJ45 10 M/100 M self-adaptive Ethernet interface.

    1, RS-485 interface

  • Optical Speed Dome
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON), 0 Lux with IR
  • Resolution2688 ? 1520
  • Focal Length6.0 - 252 mm, 42 ? optical zoom
  • Zoom SpeedApprox. 4.8 s (Optical, Wide-Tele)
  • Digital Zoom16 x
  • Field Of View58.7? to 2.0? (Wide-Tele)
  • Working Distance100 mm to 1500 mm (Wide-Tele)
  • Aperture RangeF1.2 to F4.6
  • Shutter Speed1 s to 30,000 s
  • WDR140 dB
  • Image Enhancement3D DNR, EIS, HLC/BLC, SVC
  • AGCAuto/Manual
  • White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
  • Day & NightIR cut filter
  • IR SupplementUp to 500 m
  • Privacy Mask24 programmable privacy masks
  • Optical DefogYes
  • Pan Speedconfigurable from 0.1? to 210?/s; preset speed: 280?/s
  • Tilt Speedconfigurable from 0.1? to 150?/s, preset speed 250?/s
  • Main Stream

    60 Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

    50 Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  • Sub-Stream

    60 Hz: 30 fps (704 ? 480, 352 ? 240, 176 ? 120)

    50 Hz: 25 fps (704 ? 576, 352 ? 288, 176 ? 144)

  • Third Stream

    50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 352 ? 288, 176 ? 144)

    60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 352 ? 240, 176 ? 120)

  • Video Compression

    Main Stream: H.265+/H.265/H.264+/H.264

    Sub-Stream: H.265/H.264/MJPEG

    Third Stream: H.265/H.264/MJPEG

  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Alarm ActionPreset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email
  • Alarm Input7, alarm input (0-5 VDC)
  • Alarm Output2, alarm output
  • Audio Input

    1, 3.5 mm Mic in/Line in interface.

    Line input: 2-2.4 V [p-p], output impedance: 1 K? ? 10%

    ?

  • Audio OutputLinear level, impedance: 600 ?
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface

  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, open network video interface
  • Simultaneous Live ViewUp to 20 channels
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0+, Firefox 52.0 +

  • General
  • Adjustment Range

    Network Camera (Universal Joint Module): Pan: 90?, Tilt: - 45? to 45?

    Speed Dome: Pan: 360?, Tilt: - 20? to 90?, Auto Flip

    ?

  • MountPole Mount
  • Menu Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Power Supply24 VAC, two-core terminal block
  • Power Consumption

    24 VAC: 5 A, max. 80 W (with IR and heater on)

    IR Light consumption: Max. 24 W

    Heater consumption: Max. 15 W

  • Working Temperature/Humidity

    - 40 ?C to 65 ?C (- 40 ?F to 149 ?F);

    Humidity: 90% or Less

  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions?266.6 mm ? 573.5 mm ? 699.8 mm (?10.5" ? 22.6" ? 27.5")
  • 10.89 kg (Approx. 24.0 lb)
