DS-2TD8167-190ZE2F/W

No Review

Quantity

Dhs 40.00

?

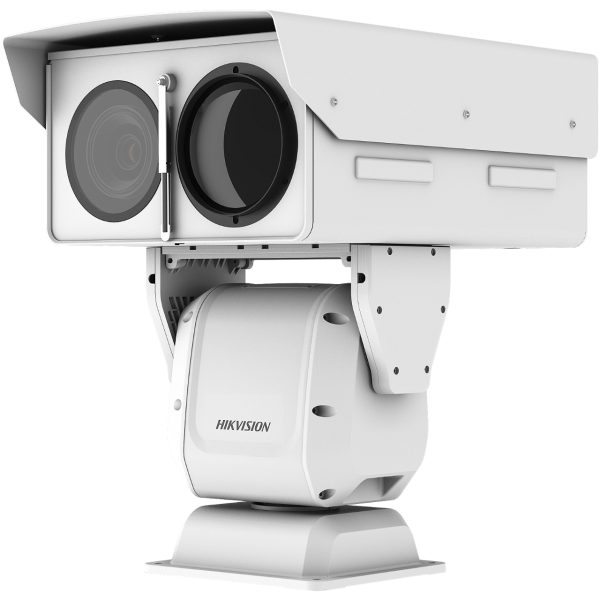

Thermal & Optical Bi-spectrum Network Stable PTZ Camera

  • Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
  • Temperature exception alarm for fire prevention
  • Fire detection algorithm, Smoke detection algorithm
  • 640 ? 512 (the resolution of output image is 1920 ? 1080) resolution 17 ?m, VOx UFPA, NETD d 35 mK (25 ?C, F# = 1.0)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years guarantee
  • Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
  • Smart tracking linkage: thermal view and optical view
  • Thermal channel supports EIS, conflicted with intelligent function

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TD8167-190ZE2F/W Specifications

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution640 ? 512 (the resolution of output image is 1920 ? 1080)
  • Pixel Interval17 ?m
  • Response Waveband8 ?m to 14 ?m
  • NETDLess than 35 mK (@25 ?C,F#=1.0)
  • Focal Length36 to 190 mm
  • Focus ModeSemi-auto & Manual
  • IFOV0.47 to 0.09 mrad
  • ApertureF0.8 to F1.2
  • Field Of View17.19? ? 13.79? (H ? V) to 3.46? ? 2.77? (H ? V)
  • Min. Focusing Distance3m
  • Digital Zoom?2, ?4, ?8
  • Optical Module
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Resolution1920 ? 1080, 2 MP
  • Min. IlluminationColor: 0.005 Lux @ (F3.5, AGC ON), B/W: 0.0005 Lux @ (F3.5, AGC ON)
  • Field Of View32.13? ? 18.4? (H ? V) to 0.53? ? 0.3? (H ? V)
  • Focal Length12.5-775 mm, 62x
  • Aperture (Range)F3.5 to F8.2
  • Focus ModeSemi-auto/Manual
  • Shutter Speed1s to 1/30,000s
  • WDR120 dB
  • Digital Zoom?2, ?4, ?8, ?16
  • Optical DefogYes
  • Image Effect
  • Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationSupported in white hot and black hot mode
  • PTZ
  • Movement RangePan: 360? Continuous Rotate; Tilt: From -45? to + 45? (auto flip)
  • Pan SpeedConfigurable, From 0.01?/s to 40?/s, Preset Speed: 240?/s
  • Tilt SpeedConfigurable, From 0.01?/s to 20?/s, Preset Speed: 200?/s
  • Proportional ZoomYes
  • Presets300 in total, 273 are configurable.
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Smart Function
  • VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
  • Temperature Accuracy? 8 ?C (?14.4 ?F)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • Video And Audio
  • Main Stream

    Optical channel

    50 Hz:25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)

    60 Hz:30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)

    Thermal channel

    50 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 512, 384 ? 288)

  • Sub-Stream

    Optical channel

    50 Hz:25 fps (704 ? 576, 352 ? 288)

    60 Hz: 30 fps (704 ? 576, 352 ? 288)

    Thermal channel

    50 fps (704 ? 576, 640 ? 512, 384 ? 288)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/ H.264

    Sub-stream: H.265/H.264/MJPEG

    ?

  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0+, Firefox 52.0 +

  • Interface
  • Alarm Input7-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 K? ? 10%
  • Audio OutputLinear Level; Impedance: 600 ?
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface

  • Analog Video Output1.0 V [p-p]/75 ?, BNC for thermal channel
  • General
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Power Supply48 VDC ? 20%, two-core terminal block
  • Power Consumption48 VDC, 5 A, max. 220 W
  • Work Temperature/HumidityFrom -40?C to 65?C (-40?F to 149?F); Humidity: 95% or Less
  • WiperYes
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension649.2 mm ? 438 mm ? 668.3 mm (25.6 " ? 17.2 " ? 26.3 ")
  • Approx. 60kg (132.3 lb)
