DS-2TD8166-100C2F/V2

No Review

Quantity

Dhs 40.00

?

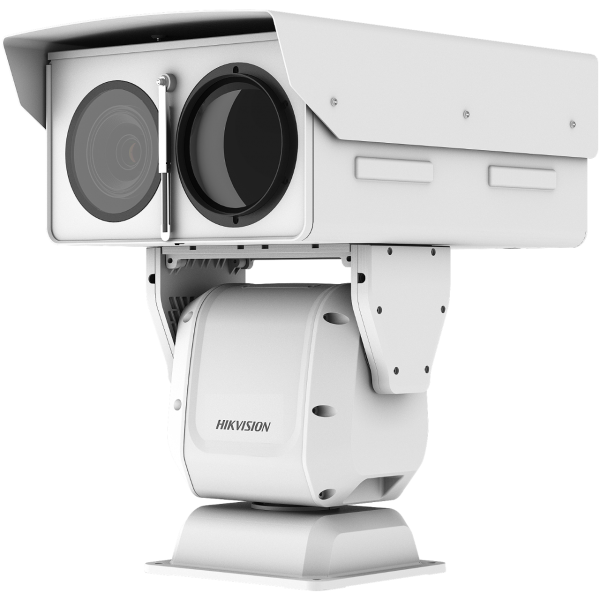

Thermal & Optical Bi-spectrum Network Stable PTZ Camera

  • High sensitivity thermal module with 640 ? 512 resolution
  • NETD is less than 40 mk (@25? C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Powerful behavior analysis algorithm, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • ?

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TD8166-100C2F/V2 Specifications

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17?m
  • NETDless than 40mk(@25?C,F#=1.0)
  • MRAD0.17 mrad
  • Field Of View6.23? ? 4.98?
  • Min. Focusing Distance10 m
  • ApertureF1.0
  • Response Waveband8?m to 14?m
  • Optical Module
  • Max. Resolution1920 ? 1080
  • Image Sensor1/2.8 Progressive Scan CMOS
  • Min. IlluminationColor : 0.05Lux @ (F1.8, AGC ON),B/W : 0.01Lux @ (F1.8, AGC ON)
  • Field Of View41.3? to 1.2? (Wide-Tele)
  • Aperture RangeF1.8-F6.1
  • Focus ModeAuto / Semiautomatic / Manual
  • WDRDigital
  • Shutter SpeedPAL: 1-1/30,000s / NTSC: 1-1/30,000s
  • Day & NightIR Cut Filter
  • Smart Function
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
  • Temperature Accuracy?8 ?C (14.4 ?F)
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • PTZ
  • Movement RangePan: 360? Continuous Rotate; Tilt: From -45 ? to + 45 ? (auto flip)
  • Pan SpeedConfigurable, From 0.01?/s to 40?/s
  • Tilt SpeedConfigurable, From 0.01?/s to 20?/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Network
  • Main StreamOptical:50Hz:25fps(1920?1080), 25fps(1280?960), 25fps(1280?720),Optical:60Hz:30fps(1920?1080), 30fps(1280?960), 30fps(1280?720),Thermal: 50fps(640 ? 512)
  • Sub StreamOptical:50Hz:25fps (704 ? 576), 25fps (352 ? 288), 25fps (176 ? 144),Optical:60Hz:30fps (704 ? 480), 30fps (352 ? 240), 30fps (176 ? 120),Thermal: 50fps(640 ? 512)
  • Video CompressionH.264 (Baseline/Main/High Profile) /MJPEG/MPEG4
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsIPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP, PPPoE, Bonjour
  • Simultaneous Live ViewUp to 20-ch
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Integration
  • Alarm InputUp to 7-ch Relay Input (0-5V DC)
  • Alarm OutputUp to 2-ch; Support Alarm Linkage
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1K??10%
  • Audio OutputLinear Level; Impedance: 600?
  • EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
  • SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
  • Analog Video Output1.0V [p-p]/75?, PAL/NTSC/BNC
  • RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
  • Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • ClientiVMS-4200
  • Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
  • General
  • Menu LanguageEnglish
  • Power48V DC/5A
  • Power Consumption220W
  • Work Temperature/HumidityFrom -40?C to 60?C (-40?F to 140?F); Humidity: 90% or Less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions559.2 mm ? 380 mm ? 239.8 mm (22.02  ? 14.96  ? 9.44 )
  • Approx. 42kg (92.6 lb)
