DS-2TD4237-25/V2

No Review

Quantity

Dhs 40.00

?

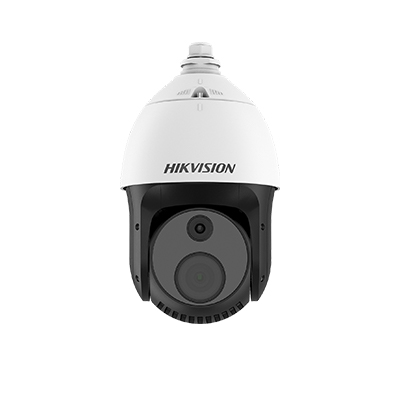

Thermal & Optical Bi-spectrum Network Speed Dome

  • High sensitivity thermal module with 384 ? 288 resolution
  • NETD is less than 40 mk (@25? C, F#=1.0)
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • ?

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TD4237-25/V2 Specifications

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Pixel Interval17?m
  • NETDless than 40mk (@25?C,F#=1.0)
  • MRAD0.68
  • Field Of View14.88? ? 11.19?
  • Min. Focusing Distance13 m
  • ApertureF1.0
  • Response Waveband8?m to 14?m
  • Optical Module
  • Max. Resolution1920 ? 1080
  • Image Sensor1/2.8 Progressive Scan CMOS
  • Min. IlluminationColor: 0.05 lux @ (F1.2 , AGC On ),B/W : 0.01 lux @ (F1.2 , AGC On )
  • Field Of View65.6? to 2.46? (Wide-Tele)
  • Aperture RangeF1.2-F4.4
  • Focus ModeAuto / Semiautomatic / Manual
  • WDR120dB
  • Shutter Speed1s to 1/100,000s
  • Day & NightIR Cut Filter
  • Smart Function
  • Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
  • VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
  • Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
  • Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
  • Temperature Accuracy?8 ?C (14.4 ?F)
  • PTZ
  • Movement RangePan: 360? Continuous Rotate; Tilt: From -5? to + 90? (auto flip)
  • Pan Speed0.1?/s to 200?/s
  • Tilt Speed0.1?/s to 105?/s
  • Proportional ZoomYes
  • Presets300
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Network
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
  • Main StreamVisible Light: 50Hz: 25fps (1920 ? 1080), 25fps (1280 ? 960), 25fps (1280 ? 720) ,Visible Light: 60Hz: 30fps (1920 ? 1080), 30fps (1280 ? 960), 30fps (1280 ? 720) ,Thermal: 25fps(1280 ? 720), 25fps(704 ? 546), 25fps(384 ? 288), 25fps(352 ? 288)
  • Sub StreamVisible Light: 50Hz: 25fps (704 ? 576), 25fps (352 ? 288) ,Visible Light: 60Hz: 30fps (704 ? 480), 30fps (352 ? 288) ,Thermal: 25fps(704 ? 546), 25fps(384 ? 288), 25fps(352 ? 288)
  • Video CompressionH.265 (Main Profile) ,H.264 (Baseline/Main/High Profile)
  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20-ch
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • Infrared
  • IR DistanceUp to 100 m
  • IR Intensity And AngleAutomatically adjusted
  • Integration
  • Alarm InputUp to 7-ch Input (0-5V DC)
  • Alarm OutputUp to 2-ch Relay Output; Support Alarm Linkage
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1K??10%
  • Audio OutputLinear Level; Impedance: 600?
  • EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
  • SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
  • Analog Video Output1.0V [p-p]/75?, PAL/NTSC/BNC
  • RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
  • Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • ClientiVMS-4200
  • Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages
  • General
  • Menu LanguageEnglish
  • Power24 V AC? 25%
  • Power Consumption30W
  • Work Temperature/HumidityFrom -30 ?C to 60 ?C (-22 ?F to 140 ?F), 90% or less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions305 mm ? 185 mm ? 163 mm (12.01 " ? 7.28" ? 6.42 ")
  • Approx. 3.9Kg (8.6lb)
