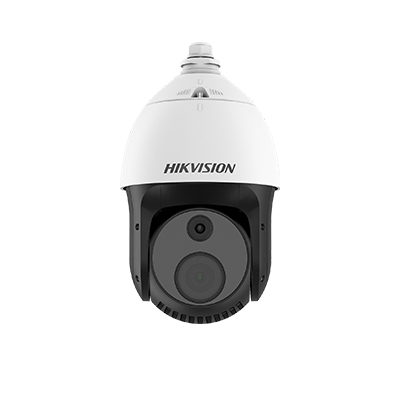

DS-2TD4237-10/V2

No Review

Add To Wishlist

Thermal & Optical Bi-spectrum Network Speed Dome

High sensitivity thermal module with 384 ? 288 resolution
NETD is less than 40 mk (@25? C, F#=1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
Reliable temperature-anomaly alarm
Advanced fire detection algorithm
?

Optical Module
Max. Resolution1920 ? 1080
Image Sensor1/2.8 Progressive Scan CMOS
Min. IlluminationColor: 0.05 lux @ (F1.2 , AGC On ),B/W : 0.01 lux @ (F1.2 , AGC On )
Field Of View65.6? to 2.46? (Wide-Tele)
Aperture RangeF1.2-F4.4
Focus ModeAuto / Semiautomatic / Manual
WDR120dB
Shutter Speed1s to 1/100,000s
Day & NightIR Cut Filter

Smart Function
Fire DetectionDynamic fire point detection, up to 10 fire points detectable.
VCA(Video Content Analysis)4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line).
Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
Temperature Accuracy?8 ?C (14.4 ?F)

PTZ
Movement RangePan: 360? Continuous Rotate; Tilt: From -5? to + 90? (auto flip)
Pan Speed0.1?/s to 200?/s
Tilt Speed0.1?/s to 105?/s
Proportional ZoomYes
Presets300
Patrol Scan8; Up to 32 Presets Per Patrol
Pattern Scan4; More Than 10 Minutes Per Pattern
Power Off MemoryYes
ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
PT StatusTurn On/Turn Off
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output

Network
APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
Web BrowserLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0+, Firefox 52.0 +
Main StreamVisible Light: 50Hz: 25fps (1920 ? 1080), 25fps (1280 ? 960), 25fps (1280 ? 720) ,Visible Light: 60Hz: 30fps (1920 ? 1080), 30fps (1280 ? 960), 30fps (1280 ? 720) ,Thermal: 25fps(1280 ? 720), 25fps(704 ? 546), 25fps(384 ? 288), 25fps(352 ? 288)
Sub StreamVisible Light: 50Hz: 25fps (704 ? 576), 25fps (352 ? 288) ,Visible Light: 60Hz: 30fps (704 ? 480), 30fps (352 ? 288) ,Thermal: 25fps(704 ? 546), 25fps(384 ? 288), 25fps(352 ? 288)
Video CompressionH.265 (Main Profile) ,H.264 (Baseline/Main/High Profile)
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live ViewUp to 20-ch
User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
Security MeasuresUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration
Alarm InputUp to 7-ch Input (0-5V DC)
Alarm OutputUp to 2-ch Relay Output; Support Alarm Linkage
Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
Audio InputLINE_IN Input/MIC Input; Peak: From 2 to 2.4V[p-p]; Output Impedance: 1K??10%
Audio OutputLinear Level; Impedance: 600?
EthernetBuilt-in RJ45; 10M/100M Ethernet Interface
SD Memory CardBuilt-in Micro SD/SDHC/SDXC Card Slot, Up to 64GB; Support Manual/Alarm Recording
Analog Video Output1.0V [p-p]/75?, PAL/NTSC/BNC
RS485Half-Duplex; HIKVISION, PELCO-P and PELCO-D Self-adaptive
Application ProgrammingOpen-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
ClientiVMS-4200
Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages

General
Menu LanguageEnglish
Power24 V AC? 25%
Power Consumption30W
Work Temperature/HumidityFrom -30 ?C to 60 ?C (-22 ?F to 140 ?F), 90% or less
Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions305 mm ? 185 mm ? 163 mm (12.01 " ? 7.28" ? 6.42 ")
Approx. 3.9Kg (8.6lb)
