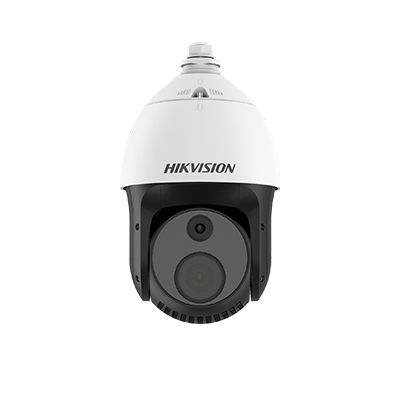

DS-2TD4228-10/W
Whatsapp_number
0
0

DS-2TD4228-10/W

No Review

Quantity


Add to Cart on WhatsApp

Buy DS-2TD4228-10/W Online Dubai

?

Thermal & Optical Bi-spectrum Network Speed Dome

  • Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance and exit
  • Temperature exception alarm for fire prevention
  • Fire detection algorithm
  • 256 ? 192 (the resolution of output image is 1280 ? 720) resolution 12 ?m, VOx UFPA, NETD d 35 mK (25 ?C, F# = 1.0)
  • Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
  • High quality detector with 10 years warranty
  • Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
  • Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
  • Smart tracking linkage: thermal view and optical view

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TD4228-10/W Specifications

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution256 ? 192 (the resolution of output image is 1280 ? 720)
  • Pixel Interval12 ?m
  • Response Waveband8 ?m to 14 ?m
  • NETDLess than 35 mK (@25 ?C,F#=1.0)
  • Focal Length10 mm
  • Focus ModeAthermalized
  • IFOV1.70 mrad
  • ApertureF1.0
  • Field Of View18? ? 13.5? (H ? V)
  • Min. Focusing Distance1.2m
  • Digital Zoom?2, ?4, ?8
  • Optical Module
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Resolution2688 ? 1520, 4 MP
  • Min. IlluminationColor: 0.05 Lux @(F1.2 AGC ON), B/W: 0.01 Lux @(F1.2 AGC ON)
  • Field Of View58.4? ? 33.8? (H ? V) to 2.14? ? 1.2? (H ? V)
  • Focal Length4.8-153 mm, 32x
  • Aperture (Range)F1.2-F4.4
  • Focus ModeAuto & Semi-auto & Manual
  • Shutter Speed1s to 1/100,000s
  • WDR120 dB
  • Optical DefogYes
  • Image Effect
  • Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationSupported in white hot and black hot mode.
  • PTZ
  • Movement RangePan: 360? Continuous Rotate; Tilt: From -5? to + 90? (auto flip)
  • Pan SpeedConfigurable, From 0.1?/s to 200?/s, Preset Speed: 240?/s
  • Tilt SpeedConfigurable, From 0.1?/s to 105?/s, Preset Speed: 200?/s
  • Proportional ZoomYes
  • Presets300 in total, 273 are configurable.
  • Patrol Scan8; Up to 32 Presets Per Patrol
  • Pattern Scan4; More Than 10 Minutes Per Pattern
  • Power Off MemoryYes
  • ParkPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
  • PT StatusTurn On/Turn Off
  • Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Doom Reboot/Doom Adjust/Aux Output
  • Illuminator
  • IR DistanceUp to 100m
  • IR Intensity And AngleAutomatically adjusted
  • Smart Function
  • VCASupport 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 10 scenes and 8 VCA rules for each scene
  • Temperature MeasurementSupport 3 temperature measurement rule types, 273 presets as scene, 21 rules of each scene (10 points, 10 areas, and 1 line)
  • Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
  • Temperature Accuracy? 8 ?C (?14.4 ?F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video And Audio
  • Main Stream

    Optical channel

    50 Hz:25 fps (1920?1080, 1280?960, 1280?720)

    60 Hz:30 fps (1920?1080, 1280?960, 1280?720)

    Thermal channel

    25 fps (1280?720, 704 ? 576, 352 ? 288, 384 ? 288)

  • Sub-Stream

    Optical channel

    50 Hz:25 fps (704 ? 576, 352 ? 288)

    60 Hz:30 fps (704 ? 576, 352 ? 288)

    Thermal channel

    25 fps (704 ? 576, 384 ? 288, 352 ? 288)

  • Video Compression

    Main stream: H.265+/H.265/H.264+/ H.264

    Sub-stream: H.265/H.264/MJPEG

  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network StorageMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0+, Firefox 52.0 +

  • Interface
  • Alarm Input7-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionPreset/Patrol Scan/Pattern Scan/SD Card Record/Relay Output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 K? ? 10%
  • Audio OutputLinear Level; Impedance: 600 ?
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface

  • Analog Video Output1.0 V [p-p]/75 ?, BNC for thermal channel
  • General
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Power Supply

    24VAC ? 20%, two-core terminal block

    48VDC ? 20%, two-core terminal block

  • Power Consumption

    24 VAC ? 20%: 0.88 A, max. 30 W

    48 VDC ? 20%: 0.625 A, max. 30 W

    ?

  • Working Temperature/HumidityFrom -40?C to 65?C (-40?F to 149?F); Humidity: 95% or Less
  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimension305 mm ? 185 mm ? 163 mm (12.01 " ? 7.28 " ? 6.42 ")
  • Approx. 3.9Kg (8.6lb)
