DS-2TD2667-35/PY

No Review

Quantity

Dhs 40.00

?

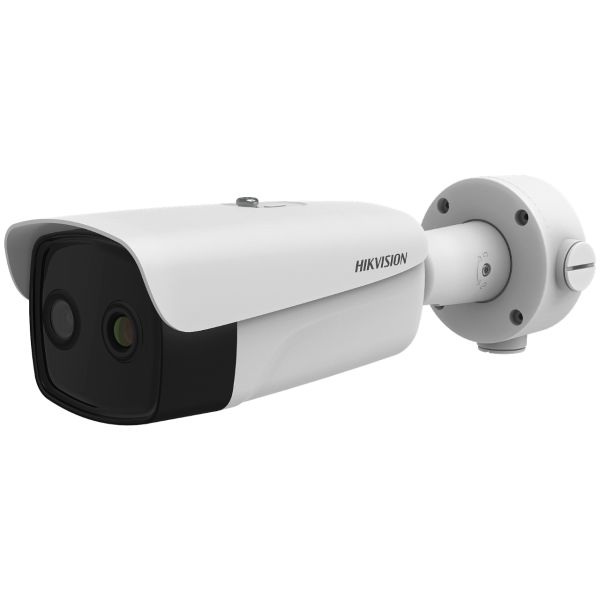

Thermal & Optical Bi-spectrum Network Bullet Camera

  • High sensitivity thermal module with 640 x 512 resolution
  • NETD is less than 35 mk (@25? C, F#=1.0)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • High quality optical module with 4 MP resolution
  • Bi-spectrum image fusion, picture-in-picture preview
  • High quality detector with 10 years guarantee

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TD2667-35/PY Specifications

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution640 ? 512
  • Pixel Interval17 ?m
  • Response Waveband8 ?m to 14 ?m
  • NETDLess than 35 mK (@25 ?C,F#=1.0)
  • Focal Length35 mm
  • IFOV0.49 mrad
  • ApertureF1.0
  • Field Of View17.67? ? 14.18? (H ? V)
  • Min. Focusing Distance30m
  • Digital Zoom?2, ?4, ?8
  • Optical Module
  • Image Sensor1/2.7" Progressive Scan CMOS
  • Resolution2688 ? 1520, 4 MP
  • Min. IlluminationColor: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
  • Field Of View39.42? ? 22? (H ? V)
  • Focal Length8 mm
  • Aperture (Range)F1.6
  • Shutter Speed1s to 1/100,000s
  • WDR120 dB
  • Image Effect
  • Bi-Spectrum Image FusionDisplay the details of optical channel on thermal channel
  • Picture In PictureDisplay partial image of thermal channel on the full screen of optical channel
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Illuminator
  • IR DistanceUp to 40 m
  • IR Intensity And AngleAutomatically adjusted
  • Smart Function
  • VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
  • Temperature Accuracy? 8 ?C (?14.4 ?F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video And Audio
  • Main Stream

    Optical:

    50 Hz: 25 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720);Optical:

    60Hz: 30 fps (2688 ? 1520, 1920 ? 1080, 1280 ? 720);Thermal:

    50 fps (1280 ? 720, 704 ? 576, 640 ? 512, 352 ? 288)

  • Sub Stream

    Optical:

    50 Hz: 25 fps (704 ? 576, 352 ? 288, 176 ? 144);Optical:

    60 Hz: 30 fps (704 ? 480, 352 ? 240, 176 ? 120);Thermal: 50 fps (704 ? 576, 640 ? 512, 352 ? 288)

  • Video Compression

    Main stream: H.265/ H.264

    Sub-stream: H.265/H.264/MJPEG

  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE SRTP, SFTP
  • Network StoragemicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
  • APIISAPI, HIKVISION SDK, and third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • Simultaneous Live ViewUp to 20 channels
  • User/Host LevelUp to 32 users. 3 levels: administrator, operator, user
  • SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0+, Firefox 52.0 +

  • Interface
  • Alarm Input2-ch inputs (0-5 VDC)
  • Alarm Output2-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 K? ? 10%
  • Audio OutputLinear Level; Impedance: 600 ?
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface

  • General
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • PowerPoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A
  • Power Consumption

    18 VAC to 30 VAC: 0.38 A to 0.22 A, max. 9 W

    9 VDC to 15 VDC: 0.63 A to 1.06 A, max. 9 W

    PoE (802.3af, class 3): 44 V to 57 V, 0.22 A to 0.17 A, max. 9.5 W

  • Work Temperature/HumidityFrom -40?C to 65?C (-40?F to 149?F); Humidity: 95% or Less
  • Protection Level

    IP67 Standard

    TVS 6000 V lightning protection, surge protection, voltage transient protection

  • Dimension376.1 mm ? 119.1 mm ? 118.1 mm (14.81" ? 4.68" ? 4.65")
  • Approx. 1.82 kg (4.01 lb)
