DS-2TD1117-6/P

No Review

Quantity

Dhs 40.00

?

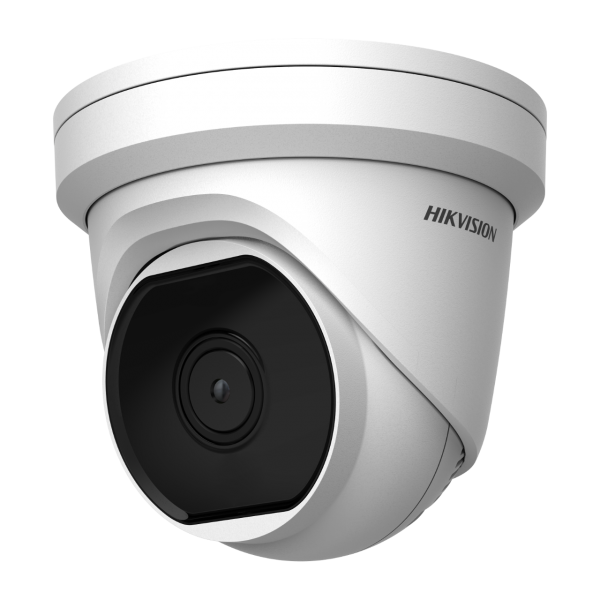

Thermal Network Turret Camera

  • High sensitivity thermal module with 160 x 120 resolution
  • NETD is less than 40 mk (@25? C, F#=1.1)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm

Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2TD1117-6/P Specifications

  • Thermal Module
  • Image SensorVanadium Oxide Uncooled Focal Plane Arrays
  • Resolution160 ? 120 (the resolution of output image is 320 ? 240)
  • Pixel Interval17 ?m
  • Response Waveband8 ?m to 14 ?m
  • NETDLess than 40 mK (@ 25 ?C,F#=1.1)
  • Focal Length6.2 mm
  • IFOV2.74 mrad
  • Field Of View25.0? ? 18.7? (H ? V)
  • Min. Focusing Distance0.6 m
  • ApertureF1.1
  • Digital Zoom?2, ?4, ?8
  • Image Effect
  • Target ColorationYes. Supported in white hot and black hot mode.
  • Smart Function
  • VCA4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules totally.
  • Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range-20 ?C to 150 ?C (-4 ?F to 302 ?F)
  • Temperature Accuracy? 8 ?C (?14.4 ?F)
  • Fire DetectionDynamic fire detection, up to 10 fire points detectable.
  • Video And Audio
  • Main Stream50 Hz: 25 fps (1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288, 320 ? 240)
  • Sub-Stream50 Hz: 25 fps (704 ? 576, 352 ? 288, 320 ? 240)
  • Third Stream50 Hz: 25 fps (1280 ? 720, 704 ? 576, 352 ? 288, 320 ? 240)
  • Video Compression

    Main Stream: H.265/H.264

    Sub-Stream: H.265/H.264/MJPEG

    Third Stream: H.265/H.264/MJPEG

  • Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
  • Network
  • ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • APIISAPI, HIKVISION SDK, third-party management platform, ONVIF (Profile S, Profile G, Profile T)
  • SecurityUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Simultaneous Live ViewUp to 20 channels
  • ClientiVMS-4200, Hik-Connect
  • Web Browser

    Live view (plug-in allowed) : Internet Explorer 11

    Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

    Local service : Chrome 57.0+, Firefox 52.0 +

  • Network StorageBuilt-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 G), supports manual/alarm recording
  • User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
  • Interface
  • Alarm Input1-ch inputs (0-5 VDC)
  • Alarm Output1-ch relay outputs, alarm response actions configurable
  • Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input1, 3.5 mm Mic in/Line in interface. Line input: 2 - 2.4 V [p-p], output impedance: 1 K? ? 10%
  • Audio OutputLinear Level; Impedance: 600 ?
  • Communication Interface

    1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

    1, RS-485 interface

  • General
  • Web Client Language

    32 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

  • Power Supply

    12 VDC ? 20%, two-core terminal block

    PoE (802.3af, class 3)

  • Power Consumption

    12 VDC ? 20%: 0.4 A, max. 4.5 W

    PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5 W

  • Working Temperature/Humidity

    -40 ?C to 65 ?C (-40 ?F to 149 ?F)

    95% or less

  • Protection LevelIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
  • Dimensions138.3 mm ? 138.3 mm ? 123.1 mm (5.45 " ? 5.45" ? 4.85 ")
  • 920 g (2.03 lb)
  • Detection Range Table/Wide Range Coverage
  • Detection Range For Humans (1.8?0.5m)182 m
  • Detection Range For Vehicles (4.0?1.4m)559 m
  • Recognition Range For Humans (1.8?0.5m)46 m
  • Recognition Range For Vehicles (4.0?1.4m)140 m
  • Identification Range For Humans (1.8?0.5m)23 m
  • Identification Range For Vehicles (4.0?1.4m)70 m
  • Detection Range Table/Smart Function Range
  • VCA Range For Humans42 m
  • VCA Range For Vehicles126 m
  • Temperature Measurement Range For Object (2m?2m)132 m
  • Temperature Measurement Range For Object (1m?1m)66 m
  • Fire Detection Range For Object (2m?2m)360 m
  • Fire Detection Range For Object (1m?1m)180 m
