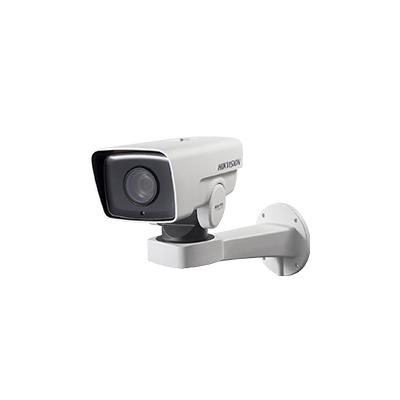

DS-2DY3320IW-DE

DS-2DY3320IW-DE Specifications

• Camera
• Image Sensor1/2.8" progressive scan CMOS
• Max. Resolution2048 ? 1536
• Min. IlluminationColor: 0.05 Lux @(F1.6, AGC ON), B/W: 0.01 Lux @(F1.6, AGC ON), 0 Lux with IR
• Shutter Speed1/1 s to 1/30,000 s
• Day & NightIR cut filter
• Zoom20x optical, 16x digital

• Lens
• Focal Length4.7 mm to 94 mm
• FOV58.3? to 3.2? (Wide-Tele)
• FocusAuto, semi-auto, manual
• ApertureMax. F1.6
• Zoom SpeedApprox. 2.7 s (Optical Lens, Wide-Tele)

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 100 m
• Smart Supplement LightYes

• PTZ
• Movement Range (Pan)360? endless
• Movement Range (Tilt)From -40? to 30?
• Pan SpeedConfigurable, from 0.5?/s to 50?/s. Preset speed 50?/s
• Tilt SpeedConfigurable, from 0.5?/s to 25?/s. Preset speed 25?/s
• Proportional PanYes
• Presets300
• Preset FreezingYes
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Status DisplayYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust
• Power-Off MemoryYes

• Video
• Main Stream

  50Hz: 25fps (2048 ? 1536, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

  50fps (1280 ? 960, 1280 ? 720)

  60Hz: 30fps (2048 ? 1536, 1920 ? 1080, 1280 ? 960, 1280 ? 720)

  60fps (1280 ? 960, 1280 ? 720)

• Sub-Stream

  50Hz: 25fps (704 ? 576, 640 ? 480, 352 ? 288)

  60Hz: 30fps (704 ? 480, 640 ? 480, 352 ? 240)

• Third Stream

  50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)

  60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

• Video Compression

  Main Stream: H.265+/H.265/H.264+/H.264

  Sub-Stream: H.265/H.264/MJPEG

  Third Stream: H.265/H.264/MJPEG

• H.264 TypeBaseline Profile/Main Profile/High Profile
• Region Of Interest (ROI)Main stream, sub-stream and third stream respectively support two fixed areas

• Audio
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

• Network
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• Simultaneous Live ViewUp to 20 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• User/HostUp to 32 users; 3 levels: Administrator, Operator and User
• SecurityUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Network StorageNAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, iVMS-4500, iVMS-5200
• Web BrowserIE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask8 programmable privacy masks
• Regional FocusYes
• Regional ExposureYes

• Interface
• Ethernet Interface1 RJ45 10 M/100 M Ethernet Interface; PoE (802.3at, class4)
• On-Board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 128 GB
• Audio1 input, 1 output
• Alarm1 input, 1 output

• Event
• Smart EventIntrusion Detection, Line Crossing Detection, Region Exiting Detection, Region Entrance Detection
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

• General
• Power

  12 VDC, 1.6 A and PoE (802.3at), 42.5 to 57 VDC, 0.6 A, Class4

  Max. 19 W, including max. 9.2 W for IR

• Dimension367 mm ? 122 mm ? 242 mm (14.45" ? 4.80" ? 9.53")
• Approx. 3 kg (6.61 lb)
• Operating Condition

  Working Temperature: Outdoor: -30?C to 65?C (-22?F to 149?F)

  Working Humidity: d 95%

• Language

  32 languages.

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• Approval
• ProtectionIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
