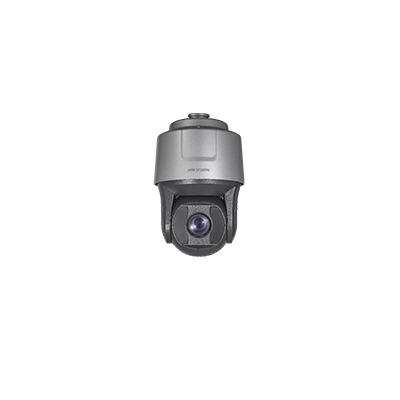

DS-2DF8225IH-AEL(W)

DS-2DF8225IH-AEL(W) Specifications

• Lens
• FOV

  Horizontal field of view: 58.2? to 3.2? (wide-tele)

  Vertical field of view: 32.7? to 1.8? (wide-tele)

  Diagonal field of view: 66.8? to 3.7? (wide-tele)

• Zoom SpeedApprox. 4.4 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.5 to F3.5
• Focal Length4.8 mm to 120 mm, 25? Optical

• Image
• Image EnhancementHLC, BLC, 3D DNR, Optical Defog, Regional Exposure, Regional Focus
• Sub-Stream

  50Hz: 25fps (704 ? 576, 640 ? 480, 352 ? 288)

  60Hz: 30fps (704 ? 480, 640 ? 480, 352 ? 240)

• Max. Resolution1920 ? 1080
• Main Stream

  50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)

  60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720)

• Third Stream

  50Hz: 25fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)

  60Hz: 30fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)

• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/Host

  Up to 32 users.

  3 levels: Administrator, Operator and User

• ClientiVMS-4200
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

• Interface
• BNC1.0 V [p-p]/75 ?, NTSC (or PAL) composite, BNC
• Alarm Output2-ch alarm output
• Alarm Input7-ch alarm input
• Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 K? ? 10%
• Audio Output1-ch audio output, line level, impedance: 600 ?
• Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
• RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

• Compression Standard
• H.264+Yes
• H.265+Yes
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video Compression

  Main Stream: H.265+/H.265/H.264+/H.264

  Sub-Stream: H.265/H.264/MJPEG

  Third Stream: H.265/H.264/MJPEG

• H.265 TypeMain Profile
• Video Bitrate256 kbps to 16384 kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
• SVCYes

• Camera Module
• AGCAuto/Manual
• Image SensorTwo 1/2.8" progressive scan CMOS
• Min. Illumination

  Color: 0.0004 Lux @(F1.5, AGC ON)

  B/W: 0.0001Lux @(F1.5, AGC ON)

  0 Lux with IR

• White BalanceAuto/Manual/ATW (Auto Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• Shutter Time1/1 s to 1/30,000 s
• Day & NightControlled by dual-sensor
• Digital Zoom16?
• Privacy Mask24 programmable polygon privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB

• Supplement Light
• IR DistanceUp to 200 m
• Smart IRYes

• PTZ
• Movement Range (Pan)360? endless
• Pan SpeedConfigurable, from 0.1?/s to 210?/s, Preset Speed: 280?/s
• Movement Range (Tilt)From -20? to 90?
• Tilt SpeedConfigurable, from 0.1?/s to 150?/s, Preset Speed: 250?/s
• Proportional ZoomYes
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-Off MemoryYes
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• PTZ Status DisplayON/OFF
• Preset FreezingYes
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

• Smart Features
• Smart TrackingEvent Tracking, supports tracking in multiple detection scenes
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIEight fixed region for each stream
• Perimeter Protection

  Intrusion, Line Crossing, Region Entrance, Region Exiting

  Support alarm triggering by specified target types (human and vehicle)

  Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.

• Event DetectionFace Detection, Audio Exception Detection, Motion Detection, Video Tampering Detection, Exception (Network Disconnected, IP Address Conflict, HDD Full, HDD Error, Illegal Login)

• General
• MaterialAluminum alloy
• Dimensions? 266.6 mm ? 437 mm (? 10.50" ? 17.20")
• Approx. 8 kg (17.64 lb)
• Protection LevelIP67 Standard. Lightning protection, surge protection and voltage transient protection meets IEC61000-4-2-2/3/4/5/6
• Power

  Without wiper: 24 VAC, max. 68 W (max. 12 W for heater, and max. 15 W for IR), Hi-PoE, max. 60 W

  With wiper: 24 VAC max. 70 W (max. 12 W for heater, and max. 15 W for IR), Hi-PoE, max. 60 W

• Working TemperatureTemperature: -40?C to 70?C (-40?F to 158?F)
• Working HumidityHumidity: d 90%
• WiperOptional
