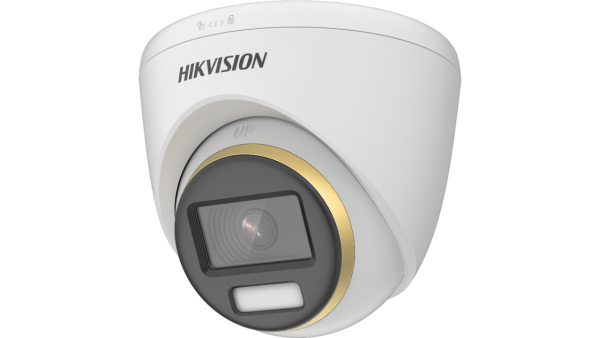

DS-2CE72UF3T-E

DS-2CE72UF3T-E Specifications

• Camera
• Image Sensor8 MP CMOS
• Signal SystemPAL/NTSC
• Resolution3840 (H) ? 2160 (V)
• Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
• Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Lens2.8 mm, 3.6 mm fixed focal lens
• Field Of View

  2.8 mm, horizontal FOV: 110?, vertical FOV: 59?, diagonal FOV: 131?

  3.6 mm, horizontal FOV: 93?, vertical FOV: 48?, diagonal FOV: 113?

• Lens MountM16
• Light AlarmSolid Light Alarm (White Light)
• Day & Night24/7 Color Imaging
• WDR (Wide Dynamic Range)e130 dB
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?

• Image
• White LightAuto/Off
• Image ModeSTD/HIGH-SAT/HIGHLIGHT
• AGCYes
• Day/Night ModeColor
• White BalanceAuto/Manual
• AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Motion Detection4 programmable motion areas
• Noise Reduction3D DNR/2D DNR
• LanguageEnglish
• FunctionSharpness;Mirror;Brightness;Anti-Banding;Smart Light;Contrast

• Interface
• Video Output1 HD analog output

• General
• Operating Conditions-40?C to 50?C (-40?F to 130?F), Humidity: 90% or less (non-condensing)
• Power Supply

  12 VDC ? 25%/PoC.at

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• ConsumptionMax. 5.1 W
• Protection LevelIP67
• MaterialMain body: Metal, Enclosure: Plastic
• White Light RangeUp to 40 m
• CommunicationHIKVISION-C
• Dimension194.2 mm ? 78 mm ? 74.5 mm (7.65" ? 3.07" ? 2.93")
• Approx. 350 g (0.77 lb.)
