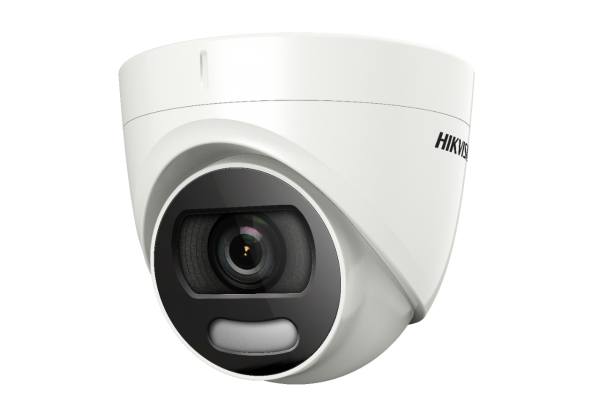

DS-2CE72DFT-F28

DS-2CE72DFT-F28 Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution

  1920 (H) ? 1080 (V)

  ?

• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightColor
• Angle AdjustmentPan: 0? to 360?; Tilt: 0? to 75?; Rotate: 0? to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 104?, vertical FOV: 54?, diagonal FOV: 126?
• Lens MountM16

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart light
• Frame Rate

  PAL: 1080p@25fps

  NTSC: 1080p@30fps

• Day/Night ModeColor
• Wide Dynamic Range (WDR)130 dB
• Image EnhancementBLC,HLC
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Main Body: Metal

  Enclosure: Plastic

• Dimension? 109.82 mm ? 85.56 mm ( ? 4.32" ? 3.37")
• Approx. 336 g (0.74 lb.)
• Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 3 W

  ?

• White Light RangeUp to 20m

• Approval
• ProtectionIP67

What's Included

Manuals
