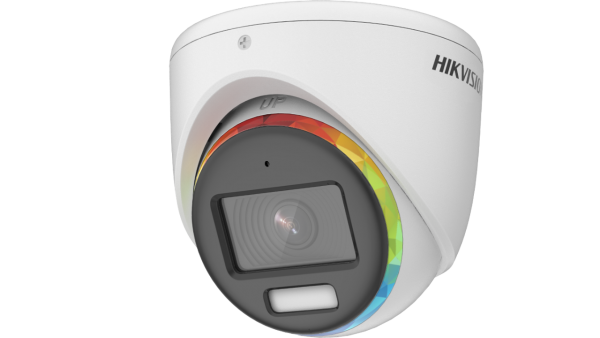

Hikvision DS-2CE70DF8T-MFSLN 2 MP ColorVu Fixed Turret Camera

DS-2CE70DF8T-MFSLN Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 75?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times
• Light AlarmSolid Light Alarm (White Light)

• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 106?, vertical FOV: 56?, diagonal FOV: 129?

  3.6 mm, horizontal FOV: 83?, vertical FOV: 44?, diagonal FOV: 100?

• Lens MountM12

• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Contrast;Mirror;Sharpness;Anti-Banding
• Frame Rate

  TVI: 1080p @ 25 fps/30 fps

  CVI: 1080p @ 25 fps/30 fps

  AHD: 1080p @ 25 fps/30 fps

  C[removed] PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)e130 dB
• Image EnhancementWDR;BLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto
• White LightAuto/Off
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• AudioLine-in
• Built-In MicrophoneYes

• Event
• Motion Detection4 programmable motion areas

• General
• MaterialMetal
• Dimension? 85.1 mm ? 77.62 mm (? 3.35" ? 3.05")
• Approx. 321 g (0.71 lb.)
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 4.8 W

• Approval
• ProtectionIP67

What's Included

Manuals
