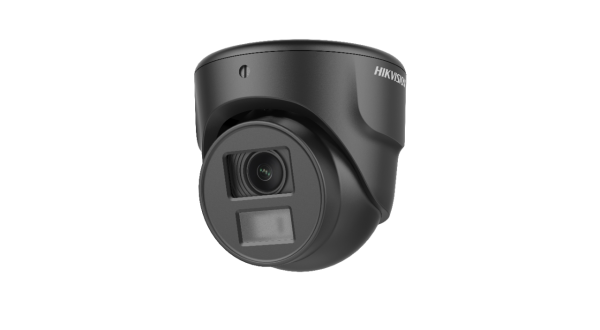

DS-2CE70D0T-ITMF

DS-2CE70D0T-ITMF Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL:1/25 s to 1/50,000 s

  NTSC:1/30 s to 1/50,000 s

  ?

• Day & NightICR
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 80?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV106? (2.8 mm), 80? (3.6 mm), 51? (6 mm)
• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, DNR , Mirror, Smart IR
• Frame Rate

  TVI: 1080P@25fps, 1080P@30fps

  AHD: 1080P@25fps, 1080P@30fps

  CVI: 1080P@25fps, 1080P@30fps

  C[removed] P/N

  ?

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• White BalanceAuto/Manual
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialMetal
• Dimension? 61.12 mm ? 60 mm (? 2.57" ? 2.56")
• 160 g (0.35 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

  ?

• ConsumptionMax. 3.6 W
• IR RangeUp to 20 m

• Approval
• ProtectionIP67
