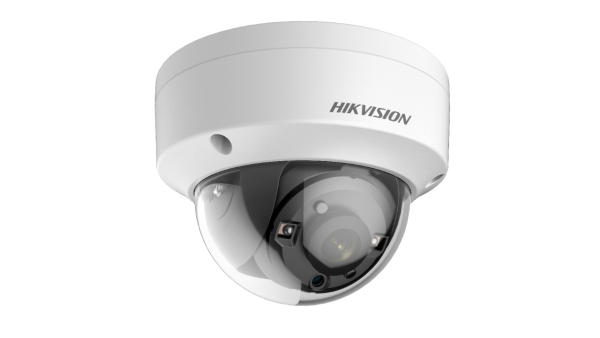

DS-2CE57U1T-VPITF

DS-2CE57U1T-VPITF Specifications

• Camera
• Image Sensor8.29 megapixel progressive scan CMOS
• Max. Resolution3840 (H) ? 2160 (V)
• Min. IlluminationColor: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/12.5 s to 1/50,000 s

  NTSC: 1/15 s to 1/50,000 s

• Day & NightIR cut filter
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV102.2? (2.8 mm), 79? (3.6 mm), 50.8? (6 mm)
• Lens MountM16

• Image
• Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR, HLC
• Frame Rate

  TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

  CVI: 8MP@12.5fps, 8MP@15fps

  AHD: 8M@12.5fps, 8M@15fps

  C[removed] 960H P/N

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)105 dB
• Image EnhancementBLC
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialMetal
• Dimension? 110.8 mm ? 84.7 mm (? 4.4" ? 3.3")
• Approx. 495 g (1.09 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• LanguageEnglish
• Power Supply

  12 VDC ?25%

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 5.3 W
• IR RangeUp to 30 m

• Approval
• ProtectionIP67, IK10

What's Included

Manuals
