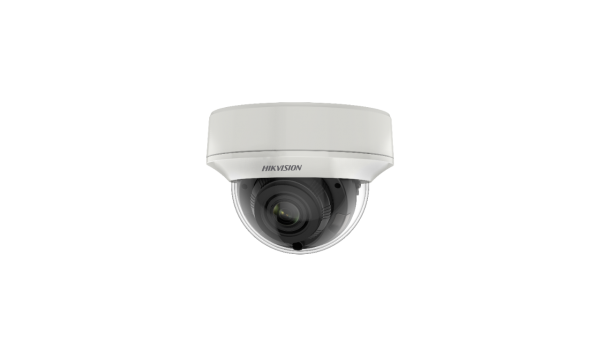

DS-2CE56U1T-AITZF

DS-2CE56U1T-AITZF Specifications

• Camera
• Image Sensor8.29 megapixel progressive scan CMOS
• Max. Resolution3840 (H) ? 2160 (V)
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/12.5 s to 1/50, 000 s,NTSC: 1/15 s to 1/50, 000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 340?; Tilt: 0? to 75?; Rotate: 0? to 355?

• Lens
• Lens Type2.7 mm to 13.5 mm motorized vari-focal lens
• Focal Length & FOV108.1? to 45.6?
• Lens Mount?14

• Image
• Image SettingsBrightness, Sharpness, DNR, Mirror, Smart IR, HLC
• Frame RateTVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,,2MP@30fps,CVI: 8MP@12.5fps, 8MP@15fps,AHD: 8M@12.5fps, 8M@15fps,C[removed] 960H P/N
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)DWDR
• Image EnhancementBLC
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• MaterialPlastic
• Dimension? 136 mm ? 101.94 mm (? 5.35" ? 4.01")
• Approx. 450 g (0.99 lb.)
• Operating Condition-40 ?C to 50 ?C (-40 ?F to 122 ?F), humidity: 90% or less (non-condensation)
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• Power Supply9 VDC to 15 VDC,-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC,*You are recommended to use one power adapter to supply the power for one camera.
• ConsumptionMax. 6.4 W,-A: Max. 8.2 W
• IR RangeUp to 60 m
