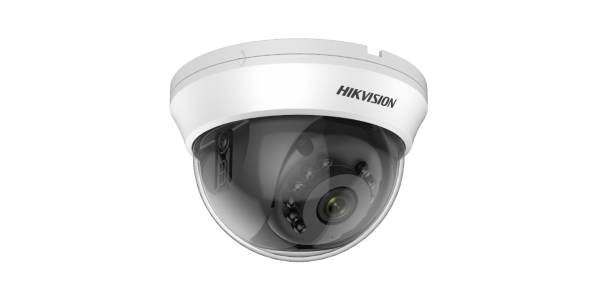

DS-2CE56D0T-IRMM(C)

DS-2CE56D0T-IRMM(C) Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 70?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101?, vertical FOV: 60?, diagonal FOV: 122?

  3.6 mm, horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?

  6 mm, horizontal FOV: 51.9?, vertical FOV: 30?, diagonal FOV: 58.8?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080P@30fps, 1080P@25fps
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video Output1 HD analog output

• General
• MaterialPlastic
• Dimension? 98 mm ? 65.4 mm (? 3.86" ? 2.57")
• Approx. 146 g (0.32 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• ConsumptionMax. 1.8 W
• IR RangeUp to 20 m
