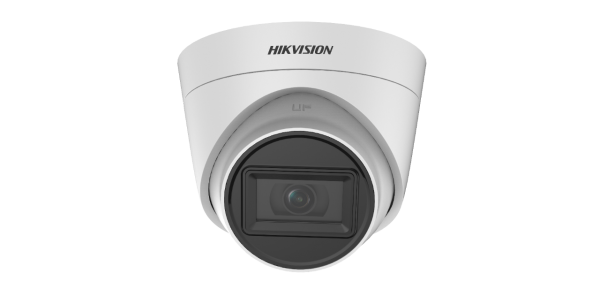

DS-2CE17H0T-IT3FS

DS-2CE17H0T-IT3FS Specifications

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?

  3.6 mm, horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

  6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?

• Lens MountM12

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness;Mirror;Sharpness
• Frame Rate

  TVI: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps

  AHD: 5 MP @ 20 fps, 4 MP @ 30 fps, 4 MP @ 25 fps

  CVI: 4 MP @ 30 fps, 4 MP @ 25 fps

  C[removed] PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR;BLC;HLC;Global
• Noise Reduction2D DNR
• White BalanceAuto/Manual
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Built-In MicrophoneYes

• General
• MaterialFront cover: Metal, Main body: Plastic
• Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
• Approx. 338 g (0.75 lb.)
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• ConsumptionMax. 4.5 W

• Approval
• ProtectionIP67
