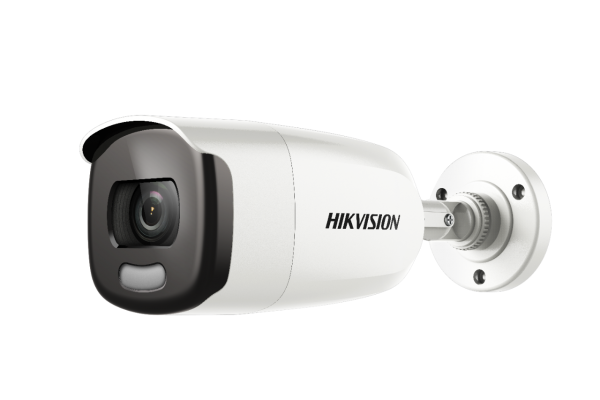

DS-2CE12DFT-F28

DS-2CE12DFT-F28 Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightColor
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?

• Lens
• Lens Type2.8 mm fixed lens
• Focal Length & FOV2.8 mm, horizontal FOV: 104?, vertical FOV: 54?, diagonal FOV: 126?
• Lens MountM16

• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, 3D DNR, Mirror, Smart light
• Frame Rate

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Wide Dynamic Range (WDR)130 dB
• Image EnhancementBLC,HLC
• White BalanceATW/MANUAL
• AGCSupport

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS

• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension223.1 mm ? 77.1 mm ? 82.6 mm (8.78" ? 3.04" ? 3.25")
• Approx. 436 g (0.96 lb.)
• Operating Condition-40? C to 60? C (-40? F to 140? F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%

  *You are recommended to use one power adapter to supply the power for one camera.

• Consumption

  Max. 4.2 W

  ?

• IR RangeUp to 40 m

• Approval
• ProtectionIP67

What's Included

Manuals
