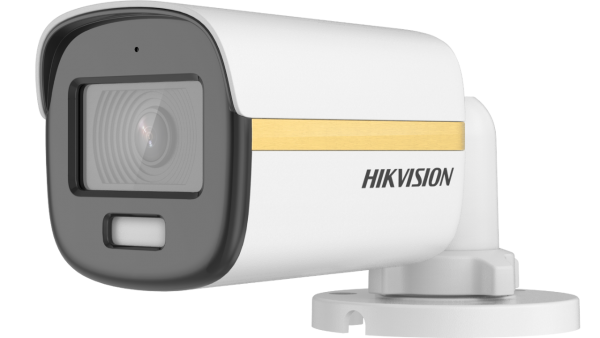

Hikvision DS-2CE10DF3T-PFS 2 MP ColorVu Audio Fixed Mini Bullet Camera

DS-2CE10DF3T-PFS Specifications

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 90?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times
• Light AlarmSolid Light Alarm (White Light)

• Lens
• Lens Type2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98?, vertical FOV: 52?, diagonal FOV: 116?

  3.6 mm, horizontal FOV: 77?, vertical FOV: 42?, diagonal FOV: 91?

• Lens MountM12

• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
• Frame Rate

  TVI: 1080p @ 25 fps/30 fps

  CVI: 1080p @ 25 fps/30 fps

  AHD: 1080p @ 25 fps/30 fps

  C[removed] PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)e130 dB
• Image EnhancementWDR;BLC;HLC;Global;HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• White LightAuto/Off
• AGCYes

• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• AudioBuilt-in mic

• Event
• Motion Detection4 programmable motion areas

• General
• MaterialPlastic
• Dimension161.1 mm ? 70 mm ? 70 mm (6.34" ? 2.76" ? 2.76")
• Approx. 223 g (0.49 lb.)
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply

  12 VDC ? 25%,

  *You are recommended to use one power adapter to supply the power for one camera.

• ConsumptionMax. 3.0 W
• White Light RangeUp to 20 m

• Approval
• ProtectionIP67

What's Included

Manuals
