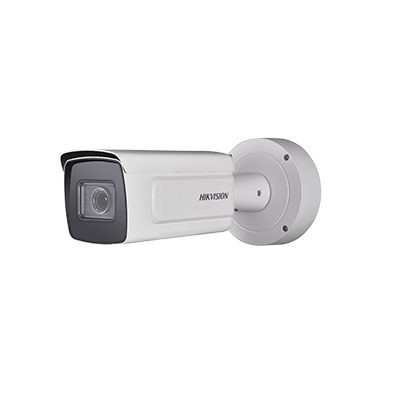

Hikvision DS-2CD5A85G0-IZ(H)S 4K Moto Varifocal Bullet Network Camera

DS-2CD5A85G0-IZ(H)S Specifications

• Camera
• Image Sensor1/1.83 Progressive Scan CMOS
• Min. IlluminationColor: 0.007 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Speed1 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentBracket, pan: 0? to 355?, tilt: 0? to 90?, rotate: 0? to 360?

• Lens
• FocusAuto, semi-auto, manual
• Lens Type2.8 to 12 mm
• FOV2.8 to 12 mm, horizontal FOV 112.4? to 41?, vertical FOV 58? to 23?, diagonal FOV 137? to 47?
• ApertureF1.2
• Lens MountIntegrated

• Illuminator
• IR RangeUp to 50 m
• Wavelength850 nm

• Video
• Max. Resolution3840 ? 2160
• Main Stream50Hz: 25fps (3840 ? 2160, 3200 ? 1800, 2560 ? 1440, 1920 ? 1080, 1280 ? 720),60Hz: 30fps (3840 ? 2160, 3200 ? 1800, 2560 ? 1440, 1920 ? 1080, 1280 ? 720),
• Sub-Stream50Hz: 25fps (704 ? 576, 640 ? 480),60Hz: 30fps (704 ? 480, 640 ? 480),
• Third Stream50Hz: 25fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480),60Hz: 30fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)
• Fourth Stream50Hz: 25fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480),60Hz: 30fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480)
• Fifth Stream50Hz: 25fps (704 ? 576, 640 ? 480),60Hz: 30fps (704 ? 480, 640 ? 480)
• Custom Stream50Hz: 25fps (1920 ? 1080, 1280 ? 720, 704 ? 576, 640 ? 480),60Hz: 30fps (1920 ? 1080, 1280 ? 720, 704 ? 480, 640 ? 480),Up to 5 custom streams are supported
• Video CompressionMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

• Audio
• Environment Noise FilteringNo
• Audio Sampling RateNo
• Audio CompressionNo
• Audio Bit RateNo

• Network
• Simultaneous Live ViewUp to 20 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
• Network StoragemicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
• Web BrowserPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
• Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• Image
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
• Target CroppingYes
• DNR3D DNR
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24bit bmp format
• Image EnhancementBLC, HLC, 3D DNR, Defog, EIS
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

• Interface
• AudioNo
• Alarm2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
• Video Output1 BNC: CVBS analog output (4CIF resolution), internal,1Vp-p composite output (75 ?/CVBS)
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M/1000M Ethernet port
• Heater-H: yes

• Event
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
• CountingCounting
• Face DetectionYes
• Exception DetectionScene change detection, defocus detection

• General
• Firmware Version5.5.80
• General FunctionOne-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
• Startup And Operating Conditions-30 ?C to 65 ?C (-22 ?F to 149 ?F), -H: -40 ?C to 65 ?C (-40 ?F to 149 ?F),Humidity 95% or less (non-condensing)
• Power Supply12 VDC ? 20%, two-core terminal block,PoE (802.3at, class 4)
• Power Consumption And Current-IZS: 12 VDC, 1.0 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A,-IZHS: 12 VDC, 1.3 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A
• Camera DimensionCamera: ?144 ? 347 mm (?5.73 ? 13.73),With package: 405 ? 190 ? 180 mm (15.93 ? 7.53 ? 7.13)
• Camera WeightCamera: approx. 2.45 kg (5.40 lb.),With package: approx. 2.7 kg (5.95 lb.)

• Approval
• EMC

  RCM: AS/NZS CISPR 32: 2015,

  IC: IC-VoC(ICES-003 Issue 7:2020),

  FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

  KC: KN32:2015,KN35:2015,

  CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013)

• Safety

  CB: IEC 60950-1,

  UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014,

  LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015,

  CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)

• Environment

  CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

  REACH SVHC: Regulation (EC) No 1907/2006

• Protection

  IK10 (IEC 62262:2002),

  IP67 (IEC 60529-2013)
