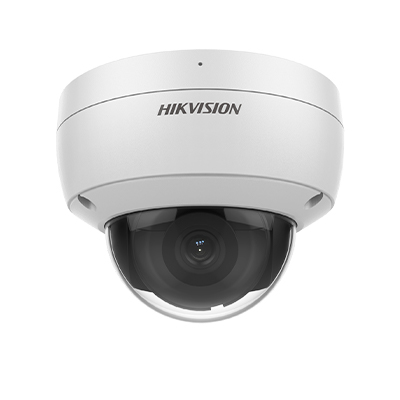

Hikvision DS-2CD3126G2-IS 2 MP AcuSense Fixed Dome Network Camera

DS-2CD3126G2-IS Specifications

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution1920 ? 1080
• Min. IlluminationColor: 0.002 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 355?

• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 107?, vertical FOV 57?, diagonal FOV 129?

  4 mm, horizontal FOV 86?, vertical FOV 47?, diagonal FOV 102?

  6 mm, horizontal FOV 55?, vertical FOV 29?, diagonal FOV 65?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.4

• DORI
• DORI

  2.8 mm: D: 44 m, O: 17 m, R: 8 m, I: 4 m

  4 mm: D: 53 m, O: 21 m, R: 10 m, I: 5 m

  6 mm: D: 86 m, O: 34 m, R: 17 m, I: 8 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  50 Hz: up to 50 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: up to 60 fps (1920 ? 1080, 1280 ? 720)

  *High frame rate is supported under certain settings.

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  *Third stream is supported under certain settings.

• Fourth Stream

  50 Hz: 10 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  *Fourth stream is supported under certain settings.

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

  Fourth stream: H.265/H.264/MJPEG

  *Third stream and fourth stream are supported under certain settings.

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)5 fixed regions for main stream and sub-stream
• Target CroppingYes

• Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise FilteringYes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage

  MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

  Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNRe 52 dB
• Image EnhancementBLC, HLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
• Built-In Microphone-U: Yes
• Audio

  1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 K?, interface type: non-equilibrium;

  1 output (line out), max.output amplitude: 2.5 vpp, output impedance: 100 ?, interface type: non-equilibrium, mono sound

• Alarm1 input, 1 output (max. 12 VDC, 30 mA)
• Reset KeyYes
• Power Output12 VDC, max. 100 mA (supported by all power supply types)

• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
• Smart EventUnattended baggage detection, object removal detection, scene change detection, audio exception detection
• LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

• Deep Learning Function
• Face CaptureYes
• Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection

• General
• Power

  12 VDC ? 25%, 0.6 A, max. 7 W, ?5.5 mm coaxial power plug

  PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W

• Dimension?121.4 mm ? 92.2 mm (?4.8" ? 3.6")
• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• Approx. 580 g (1.2 lb.)
• With Package WeightApprox. 820 g (1.6 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
• Web Client Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Approval
• EMC

  FCC SDoC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC VoC (ICES-003: Issue 6, 2019);

  KC (KN 32: 2015, KN 35: 2015)

• Safety

  UL (UL 60950-1);

  CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

  CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017);

  BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

  LOA (SANS IEC60950-1)

• Environment

  CE-RoHS (2011/65/EU); WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
