DS-2CD2-623G2-IZS

No Review

Quantity

Dhs 300.00

?

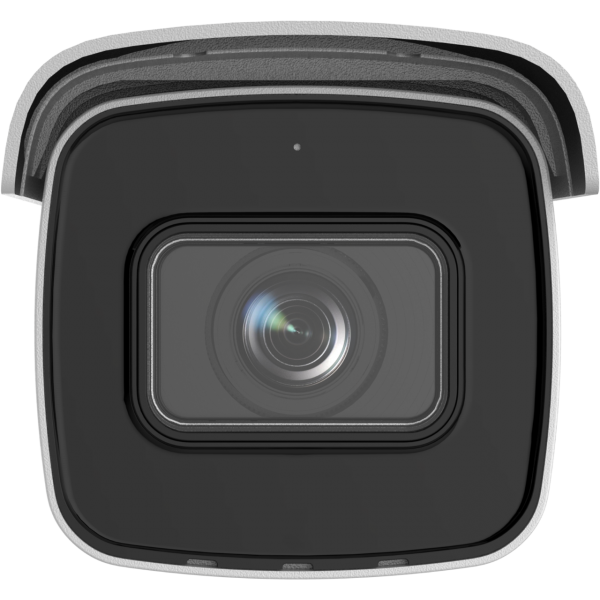

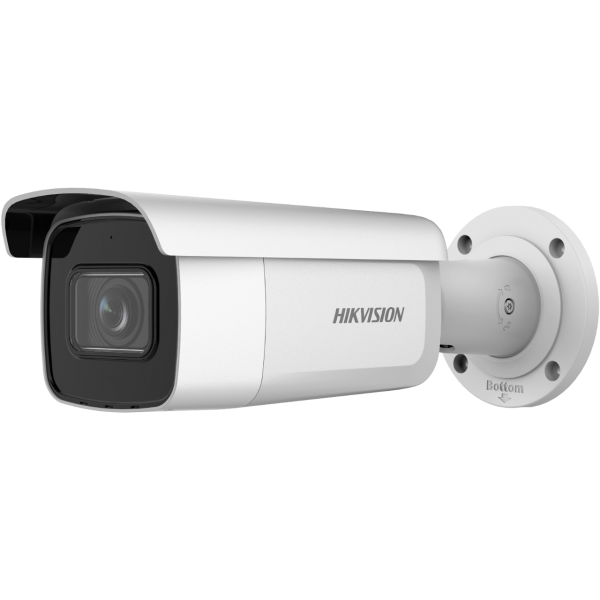

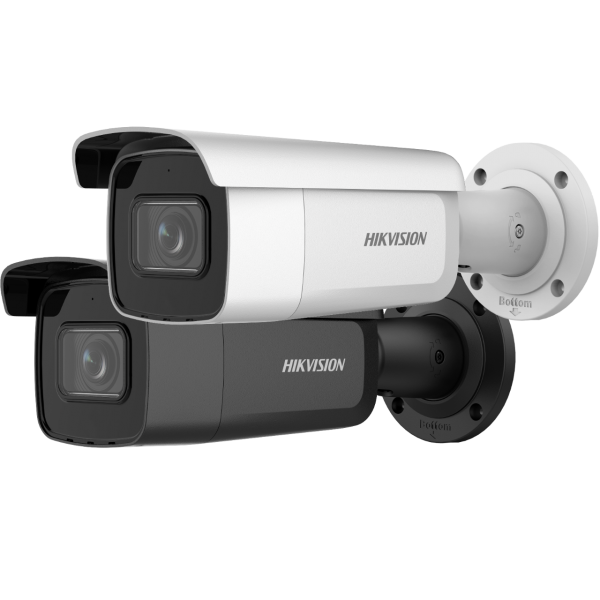

2 MP WDR Motorized Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • Focus on human and vehicle targets classification based on deep learning
?
  • ?

  • ?

  • ?

  • ?

  • ?


Why Choose Smartgain Dubai?


🚚Free Shipping Order Above 500 Dhs
🏷Price Cheap Price in Dubai, UAE
On-Time Delivery Delivery Before Time
Safe Payments Secure SSL encryption
No Hidden Charges Without extra fees

DS-2CD2-623G2-IZS Specifications

  • Camera
  • Image Sensor1/2.83 Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • P/NP/N
  • Wide Dynamic Range120 dB
  • Day & NightICR Cut
  • Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
  • Lens
  • Lens Type & FOV2.8 to 12 mm, horizontal FOV 106.6? to 31.7?, vertical FOV 54.7? to 17.7?, diagonal FOV 130.3? to 36.4?
  • ApertureF1.6
  • Lens Mount?14
  • DORI
  • DORI2.8 to 12 mm: D: 44.1 m to 137.9 m, O: 17.5 m to 54.7 m, R: 8.8 m to 27.5 m, I: 4.4 m to 13.8 m
  • Illuminator
  • IR RangeUp to 60 m
  • Wavelength850 nm
  • Video
  • Max. Resolution

    1920 ? 1080

    ?

  • Main Stream

    50Hz: 25 fps (1920 ? 1080, 1280 ? 720)

    60Hz: 30 fps (1920 ? 1080, 1280 ? 720)

  • Sub Stream

    50Hz: 25 fps (640 ? 480, 640 ? 360)

    60Hz: 30 fps (640 ? 480, 640 ? 360)

  • Third Stream

    50Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

    60Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  • Video Compression

    Main stream: H.265/H.264/H.264+/H.265+

    Sub-stream: H.265/H.264/MJPEG

    Third stream: H.265/H.264

  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main Stream supports
  • H.265+Main Stream supports
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)

    Yes

    ?

  • Region Of Interest (ROI)1 fixed region for main stream and sub-stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web Browser

    Plug-in required live view: IE 10, IE 11

    Plug-in free live view : Chrome 57.0+, Firefox 52.0+

    Local service: Chrome 57.0+, Firefox 52.0+

  • Image
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Image EnhancementBLC, HLC, 3D DNR
  • Image Parameters SwitchYes
  • Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interface
  • Audio

    1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 K?, interface type: non-equilibrium;

    1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 ?, interface type: non-equilibrium

  • Alarm1 input, 1 output (max. 12 VDC, 30 mA)
  • On-Board StorageBuilt-in micro SD, up to 256 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Face DetectionYes
  • Deep Learning Function
  • Perimeter Protection

    Line crossing detection, intrusion detection

    Supports human and vehicle targets classification

  • General
  • Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email
  • Web Client Language

    33 languages

    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

  • General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Software ResetYes
  • Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
  • Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
  • Power Supply

    12 VDC ? 25%

    PoE: 802.3at, Class 4

  • Power Consumption And Current

    12 VDC,1.08 A, max. 13 W

    PoE: (802.3at, 42.5 V to 57 V ), 0.36 A to 0.27 A, max. 15 W

  • Power Interface?5.5 mm coaxial power plug
  • MaterialAluminum alloy body
  • Camera Dimension308.5 ? 97.9 ? 93 mm (12.2" ? 3.9" ? 3.7")
  • Package Dimension385 ? 190 ? 180 mm (15.2" ? 7.5" ? 7.1")
  • Camera WeightApprox. 1390 g (3.1 lb.)
  • With Package WeightApprox. 1961 g (4.3 lb.)
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
