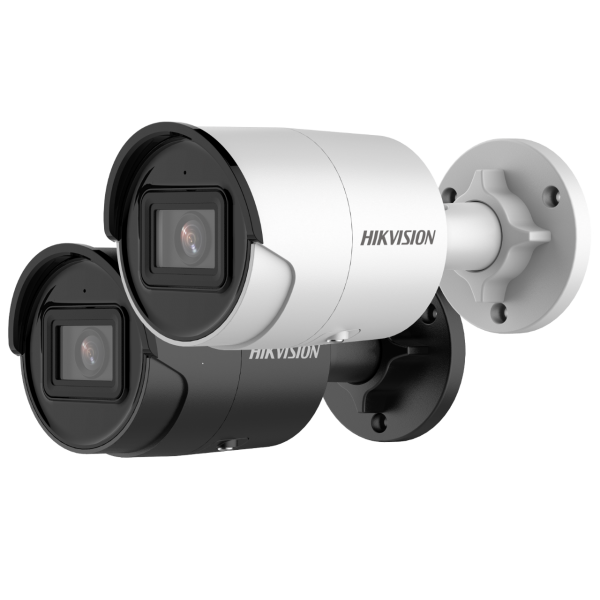

DS-2-CD2066G2-I(U)

DS-2-CD2066G2-I(U) Specifications

• Camera
• Image Sensor1/2.4" Progressive Scan CMOS
• Max. Resolution3200 ? 1800
• Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 90?,rotate: 0? to 360?

• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 105.1?, vertical FOV 53.4?, diagonal FOV 128.6?

  4 mm, horizontal FOV 83.9?, vertical FOV 44.5?, diagonal FOV 100.8?

  6 mm, horizontal FOV 47.5?, vertical FOV 26?, diagonal FOV 54.5?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6

• DORI
• DORI

  2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m

  4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m

  6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 40 m
• Smart Supplement LightYes
• IR Wavelength850 nm

• Video
• Main Stream

  ?

  50 Hz: 25 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360),

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
• Target CroppingYes

• Audio
• Audio Type-U: Mono sound
• Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE10+,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
• Day/Night SwitchDay,Night,Auto,Schedule
• Wide Dynamic Range (WDR)120 dB
• SNRe 52 dB
• Image EnhancementBLC,HLC,3D DNR
• Privacy Mask4 programmable polygon privacy masks

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Built-In Microphone-U: Yes
• Reset KeyYes

• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

• Deep Learning Function
• Face Capture

  ?

  Yes

• General
• Power

  12 VDC ? 25%, 0.5 A, max. 6 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W

• Dimension

  ?

  ?70 mm ? 161.7 mm (?2.8 ? 6.4\")"

• MaterialMetal
• Package Dimension216 mm ? 121 mm ? 118 mm (8.5" ? 4.8" ? 4.6")
• Approx. 490 g (1.1 lb.)
• With Package WeightApprox. 759 g (1.7 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language

  ?

  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams

• Approval
• EMC

  ?

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013
