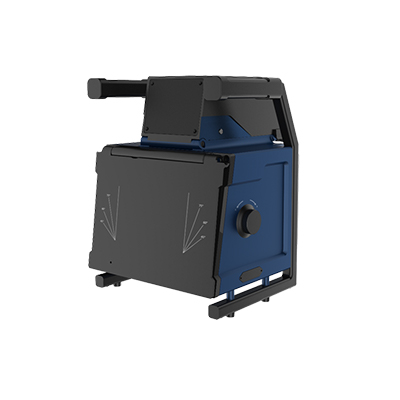

iDS-TDI900-A(C)/M

iDS-TDI900-A(C)/M Specifications

• Camera
• Image Sensor13 Progressive Scan GMOS
• Min. Illumination0.1 Lux @ (F1.2, AGC ON)
• Shutter Speed1/25 s to 1/100,000 s

• Lens
• Auto-IrisC/CS Interface
• Lens Interface TypeDC drive

• Compression Standard
• Video CompressionH.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps

• Smart Feature
• RecognitionLicense Plate Recognition
• Flashlight ControlSupports light control/time control
• CoverageUp to 3 lanes

• Image
• Max. Resolution4096 ? 2160
• Main Stream

  4096 ? 2160, 3392 ? 2008, 2944 ? 1656, 1920 ? 1080, 1280 ? 720, 704 ? 576

  Default: 4096 ? 2160

• Sub-Stream

  3392 ? 2008, 2944 ? 1656, 1920 ? 1080, 1280 ? 720, 704 ? 576

  Default: 1920 ? 1080

• Third Stream

  1920 ? 1080, 1280 ? 720, 704 ? 576

  Default: 1280 ? 720

• FormatJPEG
• Video CompressionJPEG encoding
• Image Settings

  Saturation, brightness, contrast, white balance, gain and 3D DNR are adjustable via client

  software.

• Frame Rate

  50 Hz: 25 fps (4096 ? 2160)

  60 Hz: 30 fps (4096 ? 2160)

• Image EnhancementBLC, HLC, 3D DNR
• Day/Night SwitchAuto/Scheduled/Triggered by alarm in
• Picture OverlayLOGO picture can be overlaid on video with 128 ? 128 24-bit bmp format.

• Network
• Network StorageSolid state disk (500 GB)
• ProtocolsTCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP
• General FunctionOne-key reset, three streams, heartbeat, password protection, watermark and NTP time sync.
• Security Measures

  Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest

  authentication for ONVIF (Version 2.1)

• Alarm Trigger

  HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light

  detector exception

• APIONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
• Simultaneous Live ViewUp to 20 channels
• User/Host

  Up to 16 users

  3 user levels: administrator, operator and user

• ClientiVMS-4200 (Only for video live view and LPR information search)
• Web BrowserIE8-IE11, plug-in free live view supported
• PositioningGPS

• Interfaces
• USB Interface1 USB 3.0
• Communication Interface1 RJ45 10M/100M/1000M Ethernet interface
• Output3 outputs for flashlight control

• General
• Power Supply19 VDC, and embedded 10.8V lithium battery
• Approx. 9 kg (19.84 lb)
• Power ConsumptionMax.25 W
• Protection LevelIP54
• Firmware VersionV4.3.0
• Operating SystemLinux
• Operating Conditions (Without Battery)

  Temperature: -30 ?C to +70 ?C (-22 ?F to +158 ?F)

  Humidity: 90% or less (non-condensing)

• Operating Conditions (With Battery)

  Temperature: -20 ?C to +60 ?C (-4 ?F to +140 ?F)

  Humidity: 90% or less (non-condensing)

• Radar
• Trigger ModeTrigger vehicle head, trigger vehicle tail, and trigger vehicle head and tail
• Central Frequency24.15 GHz ? 45 MHz
• Velocity Width Of Antenna4.9 ? 17.3?
• Speed Detection Range10 to 250 km/h
• Speed Detection Deviation-4 to 0 km/h

• Vehicle Detection
• Countries/Regions

  Mid-East:

  Turkey, United Arab Emirates, Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia,

  Tunisia, Palestine, Pakistan

  Africa:

  South Africa, Kenya, Nigeria, Tanzania, Mauritius Morocco

  Asia-Pacific:

  Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam,

  the Philippines, Hong Kong, Macao, Taiwan, Burma, Japan, India, Mongolia

  America:

  United States of America, Colombia, Brazil, Ecuador, Peru, Mexico

  Europe:

  Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France,

  Netherlands, Switzerland, Spain, United Kingdom, Ireland, Germany, Italy, Austria, Israel

  Russian-Speaking Regions:

  Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation,

  Ukraine, Moldova, Belarus, Uzbekistan

• Accuracy (Under Recommended Installation And Lighting Conditions)

  Capture rate > 90%

  LPR accuracy > 95%

  Mistaken capture rate < 3%

• No License Plate DetectionSupported
